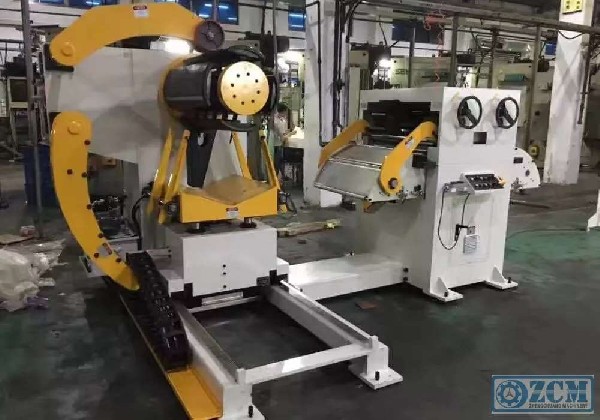

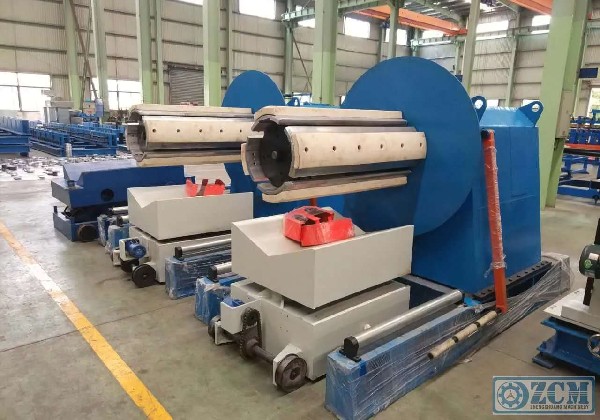

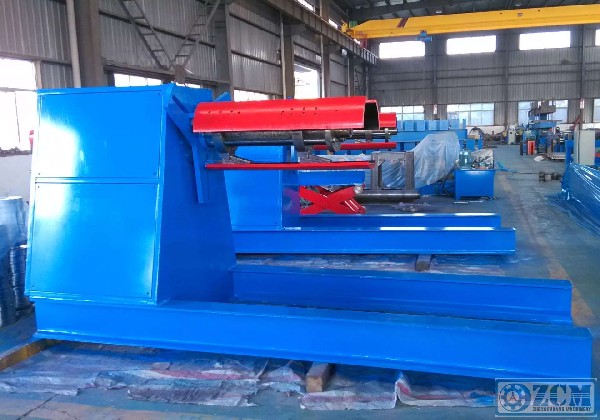

Hydraulic Decoiler

10ton hydraulic decoiler

OTHER configuration:

Machine SpecificationsWeightAbout2000kgsSizeAbout 3.5m x 2.0m x2.0m (length x width x height)ColorMain color: blueWarning color: yellowMain Technical ParametersLoading Capacity10tonsSuit for coil inner-diameter508mmsuit for coil max outer diameter1300mmControlling systemConverterElectric Power requi

get a free quote

Product Description

Machine Specifications
Weight	About2000kgs
Size	About 3.5m x 2.0m x2.0m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Main Technical Parameters
Loading Capacity	10tons
Suit for coil inner-diameter	508mm
suit for coil max outer diameter	1300mm
Controlling system	Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement
Coil car	for option
