Roof Sheet Roll Forming Machine

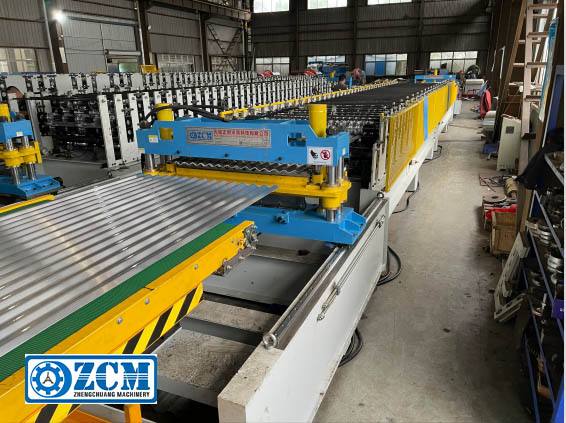

double / triple layer roll forming machine

OTHER configuration:

No.ItemSpecUnit1Machine TypeYX19-76.2-990.6/YX34-166.67-10002StructureWall board type3Raw materialPPGI4Feeding width1219mm5Effective width748/1056mm6Thickness0.3-0.8mm7Yield strength350mpaMpa8Working speed18m/min9Roller QTY21step10Roller material45# forget steeland chroming plate on the surface11Mai

get a free quote

Product Description

No.	Item	Spec	Unit
1	Machine Type	YX19-76.2-990.6/YX34-166.67-1000
2	Structure	Wall board type
3	Raw material	PPGI
4	Feeding width	1219	mm
5	Effective width	748/1056	mm
6	Thickness	0.3-0.8	mm
7	Yield strength	350mpa	Mpa
8	Working speed	18	m/min
9	Roller QTY	21	step
10	Roller material	45# forget steeland chroming plate on the surface
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of the shaft	75	mm
13	Main motor power	7.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic pressure	12	Mpa
16	Voltage	According to the customer requirement
17	Blade material	Cr12 quenching treatment
18	Electric system	Siemens PLC
19	Cutting mode	Hydraulic cutting, cutting after forming
20	Color	Blue+yellow
21	Container dimension	1x40	GP
