A. Main data

1. Material texture: : Cold-rolled sheet Galvanized steel  YS：≤350MPA

2. Material thickness: 0.3-0.6mm

3.Feeding width: /

4.effective width: 60mm

5.Decoiler : Manual decoiler (3T)

6.Machine structure mode: column structure

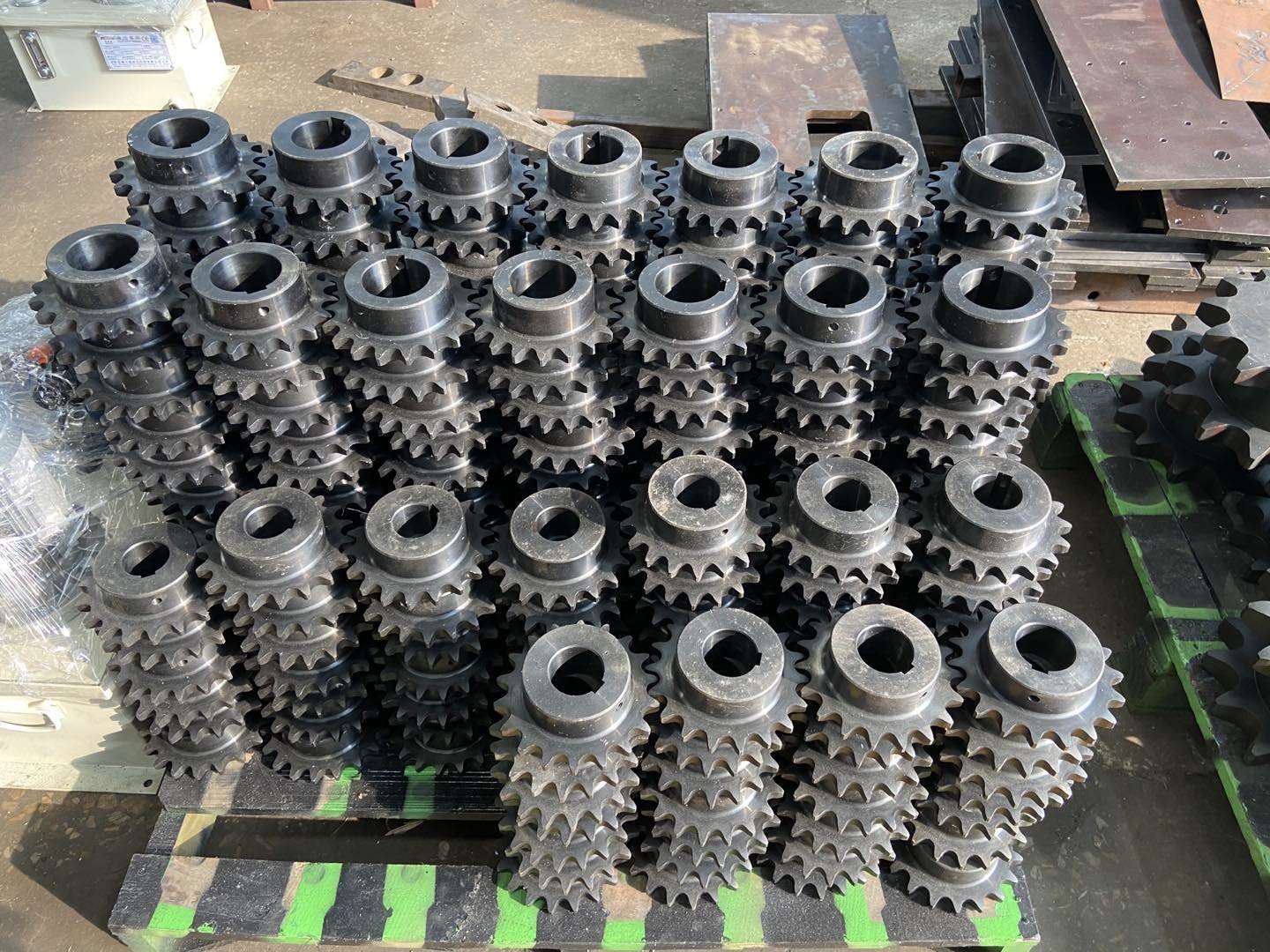

7.Drive mode: column structure with gear drive or chain drive (according to customer requirement)

8. Main motor power: 5.5 KW

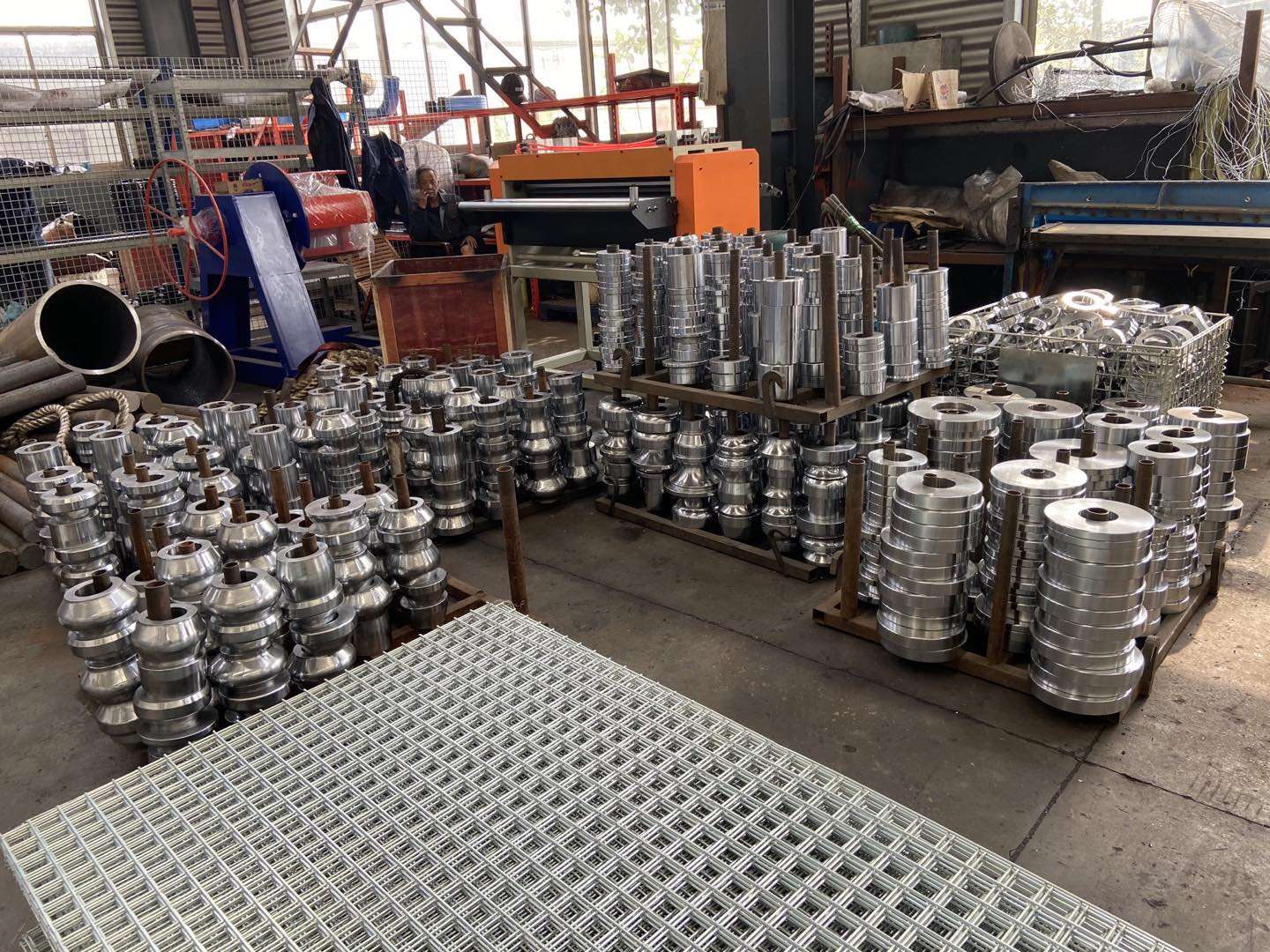

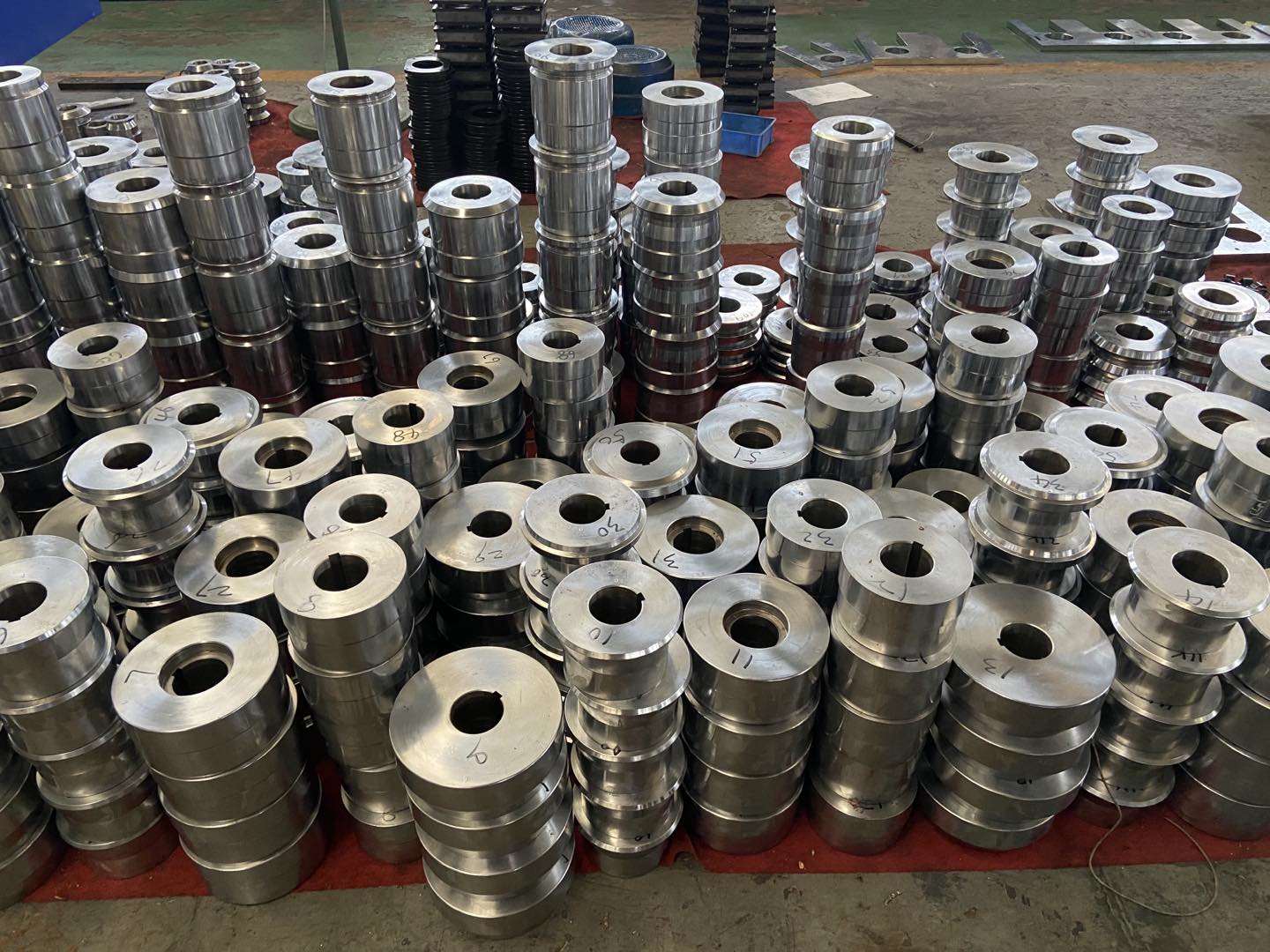

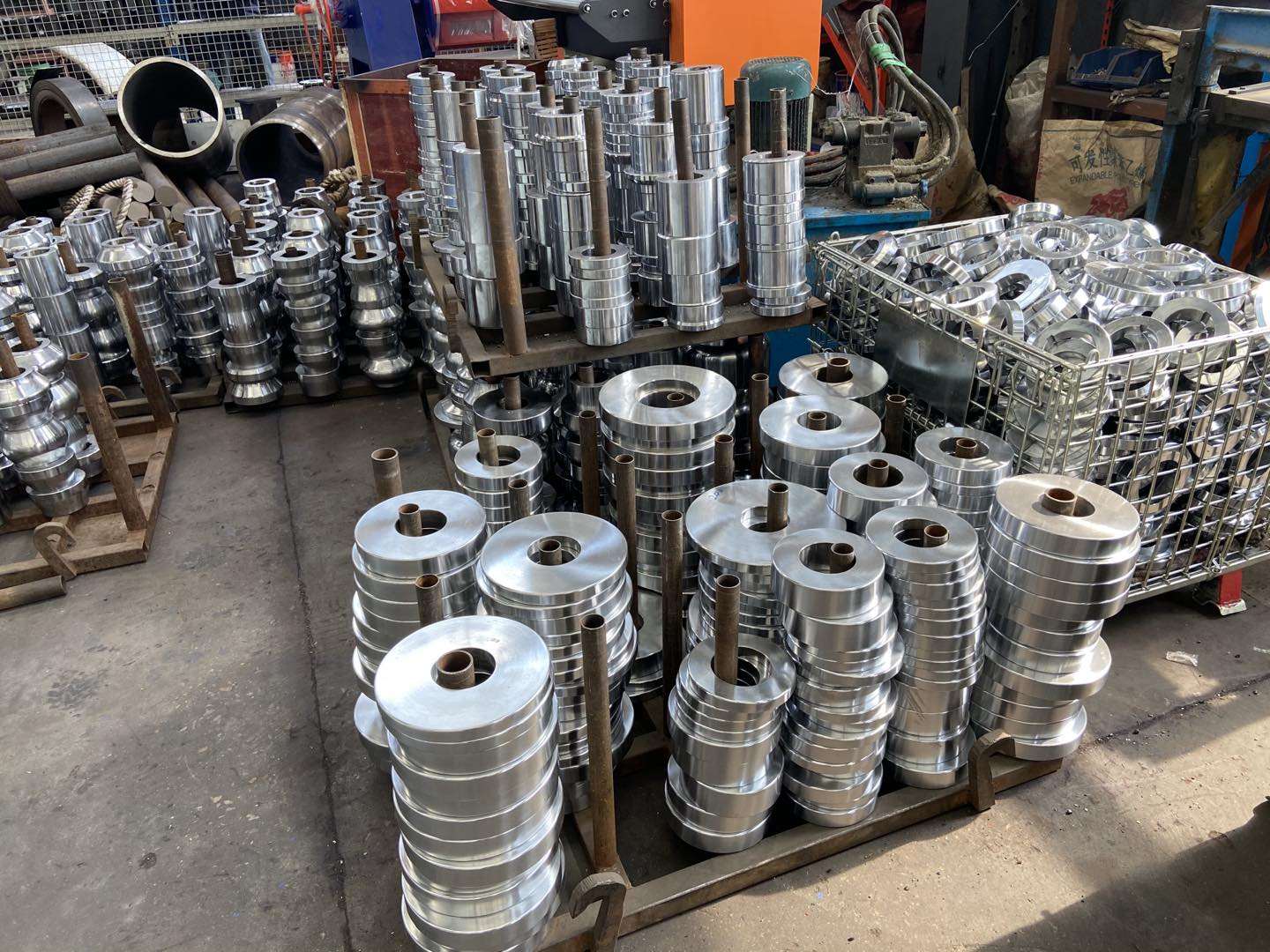

9.Forming roller step : 12 steps

10.Roller material : Cr12Mov , with quenching treatment

11. Main shaft diameter: φ50mm

12. Cutting mode: Hydraulic cutting system，cutting blade material SKD11

13. Hydraulic station motor power：3KW（with energy accumulator）

14. PLC: Siemens PLC, YASKAWA frequency converter, Omron encoder

15.Working speed: ：0-70 m/min ( including the punching time )

16.Automatic output table ：2.5M  （or customized）

B. Production technology Process

Manual decoiler(3T) →roll forming→hydraulic cutting →output

Detail:
