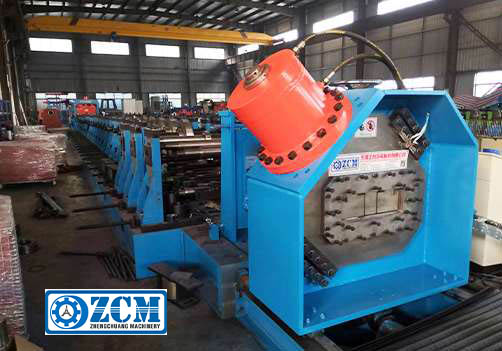

Heavy dury C / U and Omega prfile roll forming machine:

Main techncial parameters:

Rolling material: Q345B strip coil.

Rolling coil thickness: 2.0-5.0mm, it can be upto 10mm.

Rolling coil width: about 920/470mm.

Coil inner diameter: 500-620mm;

Workpiece accuracy: length±1.0mm; end hole distance±1.0mm;

Straightness: 0.5mm/m; width tolerance:±3mm;

Punching position tolerance≤0.5mm; symmetry:±1.5mm.

Production line space area: 45m x 3m x 1.6m (L x W x H).

Workers required: 2 workers;

Total power: about 160KW;

Process:

Hydraulic decoiling—Pressing& shaveling head—Guiding& feeding

--Leveling—Servo punching & cutting— Roll forming—

hydraulic cutting--Runout table.
