Other Special Shape Roll Forming Machine

a shapeand lshape roll forming machine with welding line

OTHER configuration:

Main data1．Material Spec.（㎜）： mmx(0.7-1.6mm) xL,Strength yield≤250MPa2．Working speed：8～12M/min3．Roller steps：20steps4．Main motor power：15kW5. Hydraulic station motor power：4kW6．Roller material：High quality 45# forged steel with hard chrome plating on the surface and quenching treatme

get a free quote

Product Description

Main data

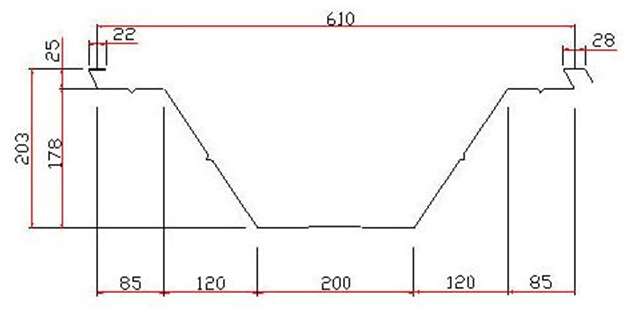

1．Material Spec.（㎜）： mmx(0.7-1.6mm) xL,Strength yield≤250MPa

2．Working speed：8～12M/min

3．Roller steps：20steps

4．Main motor power：15kW

5. Hydraulic station motor power：4kW

6．Roller material：High quality 45# forged steel with hard chrome plating on the surface and quenching treatment.

7．Main shaft material：High quality 45# steel with finish machining and thermal refining treatment.

8．Main shaft diameter：φ90mm

9．Hydraulic station pressure：10～12 Mpa

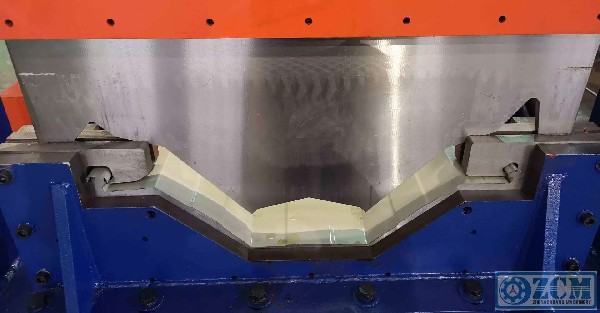

10．Blade material：Cr12quenching treatment

11．Electronic system：The machine adopt industrial computer PLC frequency control.

12．Machine dimension(L x W x H )：11000x1400x1700mm

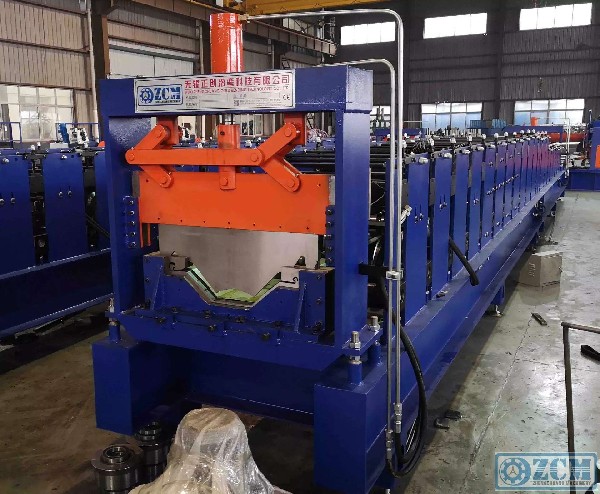

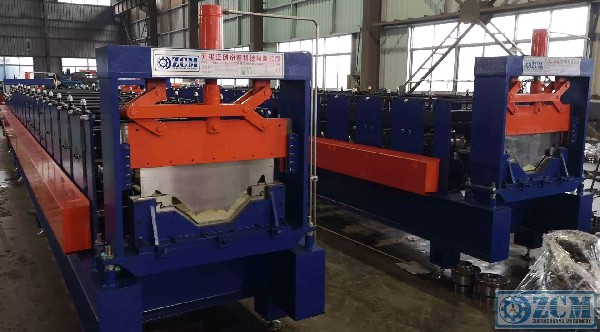

Machine main structure

The whole machine is including 5T manual decoiler, drive system, roll forming machine(including the guide platform), cutting device, hydraulic system, output table, etc.
