Other Special Shape Roll Forming Machine

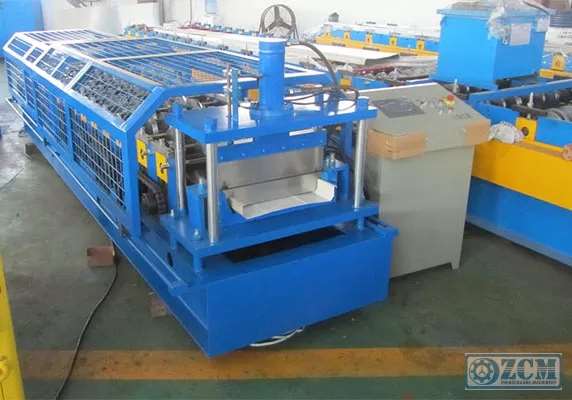

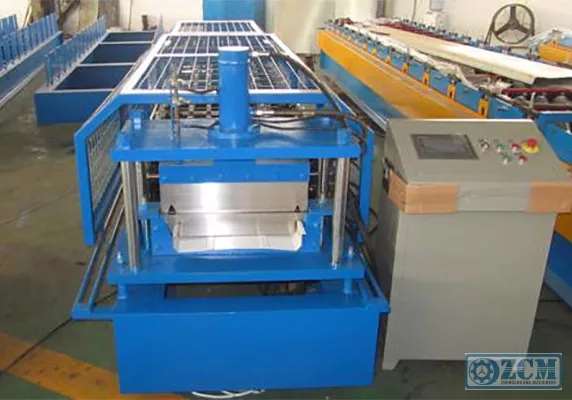

beam standing roll forming machine

OTHER configuration:

Item NODescriptionUnit\TypeRF-RP1Material Thicknessmm0.7-1.2mm for Color coated steel2Forming Speedm/min4-83Roller standsstand164Roller Material45# steel, coated with chrome, fire treated, HRC 58-625Shaft diameter and materail<span color:#333333;"="" style="transition: all 0.6

Product Description

Item NO

Description

UnitType

RF-RP

1

Material Thickness

mm

0.7-1.2mm for Color coated steel

2

Forming Speed

m/min

4-8

3

Roller stands

stand

16

4

Roller Material


45# steel, coated with chrome, fire treated, HRC 58-62

5

Shaft diameter and materail


<span color:#333333;"="" style="transition: all 0.6s ease 0s;-webkit-tap-highlight-color: transparent;font-size: 12px">肖70, 45# steel, fire treated, HRC 58-62

5

Main Motor Power

Kw

7.5

6

Hydrauliccutting Power

Kw

4

7

Hydraulic pressure

Mpa

12

8

Power Supply


380V, 50HZ,3 phase

9

Tolerance

mm

1.5

10

Material of cutting


Cr12

11

Control system


PLC with touch screen

12

Main machine weight

T

6-7 Ton

13

Outer specification

m

8*1.3*1

14

Transmission Type


1 inch chain drive

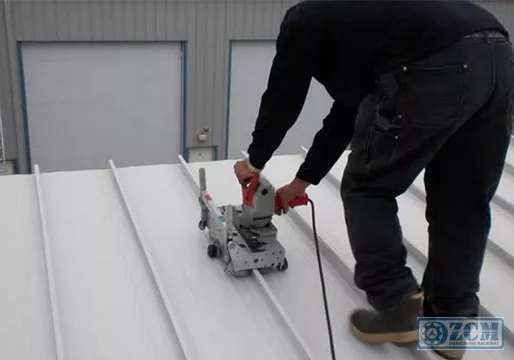

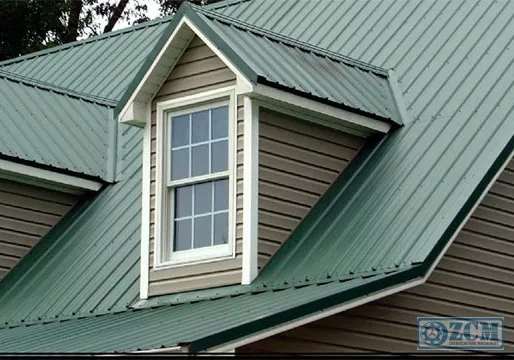

When most homeowners begin thinking about a metal roof, all they can envision are the roofs they have seen on barns and commercial buildings. Those types of metal roofs typically have panels that run vertically up the roof. These types of metal panel roofs are called “Standing Seam” because their prominent visual feature is the raised interlocking seam which joins one panel to the next. Often called “commercial roofing,” or “agricultural panel roofing,” or even “barn roofing,” these products do provide the great protection and durability for which metal is known. Classic’s ClickLock Standing Seam provides the look of the products that you see everywhere on restaurants and farm outbuildings.

ClickLock has been engineered in narrow 12” panels for a clean, contemporary look that is architecturally scaled for the scale of any home rather than for the larger scale of a barn or shopping center. Manufactured from heavy-duty, rust-free aluminum, ClickLock stands apart from most standing seam panels that are steel. Additionally, in comparison to most agricultural panels, ClickLock has all concealed fasteners, eliminating failure-prone rubber washers beneath exposed screw heads.

For homeowners who want a metal roof with a traditional appearance, ClickLock is designed to be the best. The stainless fastening clips and screws ensure secure and lasting attachment with no chance for problems resulting from expansion and contraction. The trims used to complete a ClickLock roof have also been carefully designed for beauty and durability
