1. Q345BRaw material mechanical property and Spec.: Q345 B steel strip

2. Steel strip thickness：： 2-4mm

3.  The width of the strip：350-750mm

4. Steel coil bore：　φ500-620mm

5. Precision of the work piece：Length±1.0mm，hole distance±1.0mm，straightness 0.5mm/M，width tolerance±3mm，punching location degree tolerance：≤0.5mm；degree of symmetry±1.5mm;

6.  LXWXH：about 35m×3m×2.6m

7.  Worker quantity： 2 workers

8. Total power of the line：about 90KW

C. Production technology Process

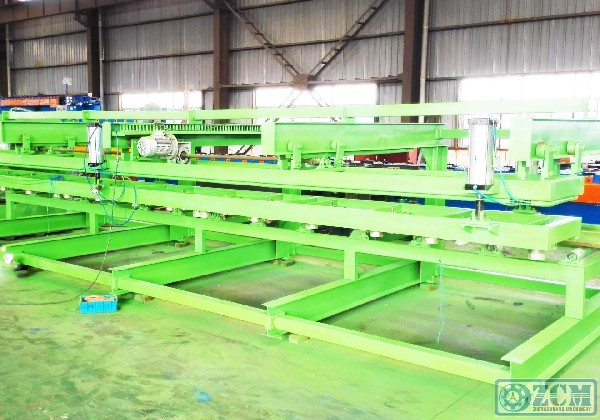

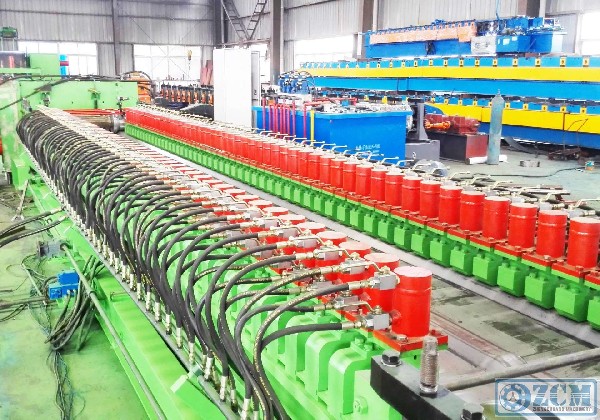

Hydraulic feeding→press head and shovel head→Guiding feeding→Level machine→Servo punching and cutting→transfer table→forming→stacker

Forming speed: 2-4m/min;

Forming thickness: 1.0-5.0mm;

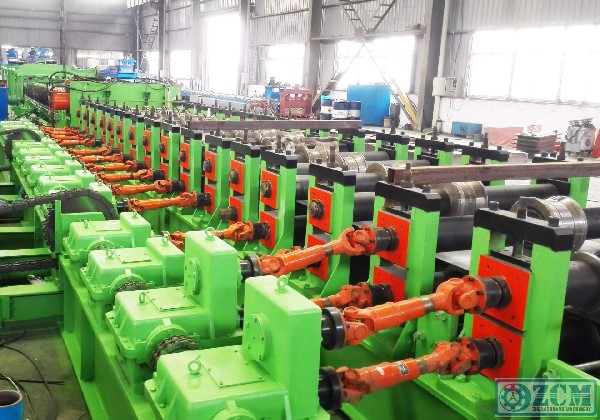

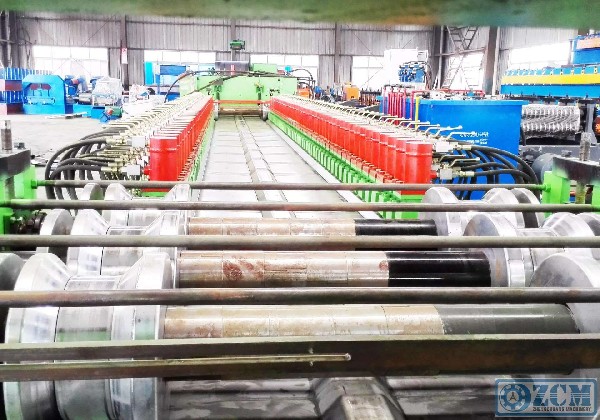

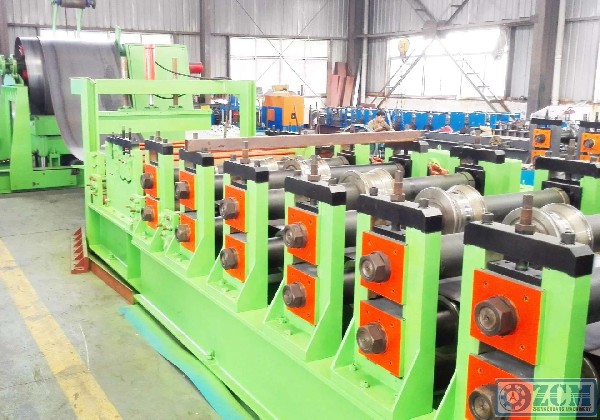

Forming stations: 18 steps;

Main motor power: 90kw;

Controlling system: PLC frequency conversion controlling, Japanese Omron Encoder;

Application：

Bin board production line (squares assembly silo)

Function: Used in new type of prefabricated plate production units;

Profile: Plate production line consists of six parts: feeding machine, pinch leveling, forming, punching, electric controlling system and hydraulic system. The line can produce the plate with high-efficiency & stable quality, meanwhile, the application of this plate is a large breakthrough of the industry. It takes the place of the welding production style, uses assembly silo construction, so as to reduce the leading time, improve the appearance & quality of bin plate, and create the value for clients.

Production capacity: Can produce bin plate 200 boards/day (8 hours);
