Other Special Shape Roll Forming Machine

chicken farm roll forming machine

OTHER configuration:

No.ItemsSpecificationUnit1Machine TypeU Stud shape2StructureWall board type3Raw materialSteel belt4Feeding width49mm5Effective width30mm6Thickness1.5mm7Yield strength350Mpa8Working speed18m/min9Roller QTY6Step10Roller material45# High quality steel with quenching treatment and hard chrome plating11M

get a free quote

Product Description

No.	Items	Specification	Unit
1	Machine Type	U Stud shape
2	Structure	Wall board type
3	Raw material	Steel belt
4	Feeding width	49	mm
5	Effective width	30	mm
6	Thickness	1.5	mm
7	Yield strength	350	Mpa
8	Working speed	18	m/min
9	Roller QTY	6	Step
10	Roller material	45# High quality steel with quenching treatment and hard chrome plating
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of the shaft	70	mm
13	Main motor power	4.4KW single phase motor	KW
14	Hydraulic station power	3KWsingle phase motor	KW
15	Hydraulic pressure	12	Mpa
16	Voltage	According to the customer demands
17	Blade material	Cr12 quenching treatment

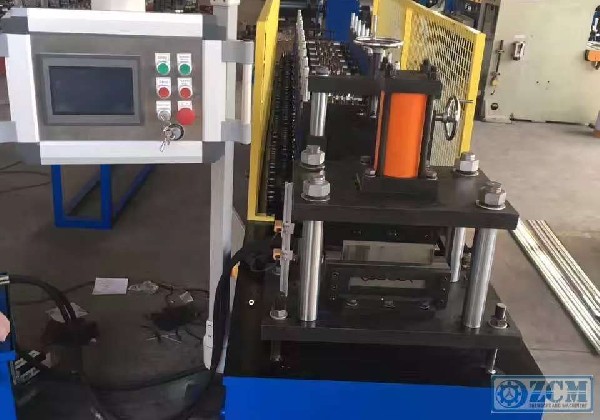

18	Electric system	Panasonic PLC

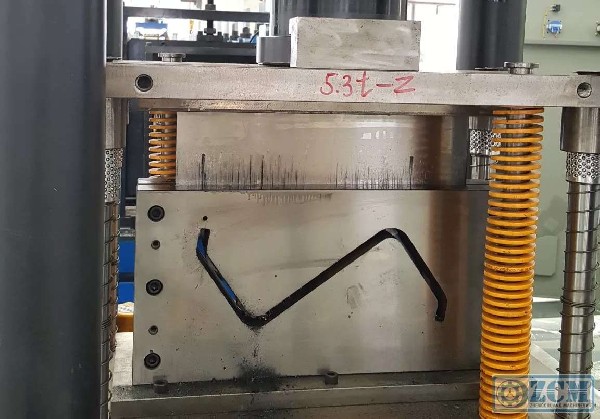

19	Cutting mode	Hydraulic cutting, cutting after forming
20	Color	Blue+ yellow
21	Container dimension	1x20	GP
