A.)  Raw material mechanical property and Spec.:

     Material：Q235

    Steel strip thickness：    2～3.5mm

    Steel coil bore：    φ600

    Steel coil OD：    ≤φ1800

    Steel coil weight：    ≤10T

B.) Product Spec.：

    Product：According to the drawing

    Width of the product：    1220mm

   Height of the product：    85mm

   Length of the product：    2000-4000mm

   Length tolerance：    ±2mm

C.) Technology Spec.：

    Forming mode：  cold roll forming

   Working speed：    3-13m/min

   Feeding direction：    Left feeding

   Main voltage：    According to the customer demands

   Main motor power：  About 37KW

D.) Main parts data:

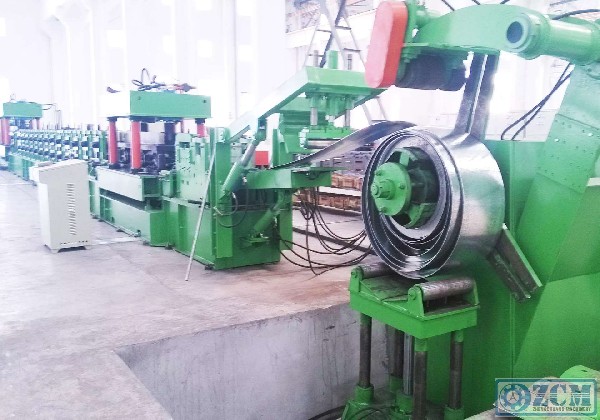

1. Decoiler：Cantilever type hydraulic decoiler, the load capacity is 6T, Coil boreφ500-600，Coil max                            diameterφ1800.

Hydraulic motor power 4KW

2.   Levelling and feeding：

Wall board type levelling machine, two roller feeding, 7 roller levelling.Levelling roller

diameter is 80mm, material is 40Cr，quenching treatment hardness HRC48º～52º。The

levelling machine has guiding vertical roller front and back, feeding hole has nip rolls.

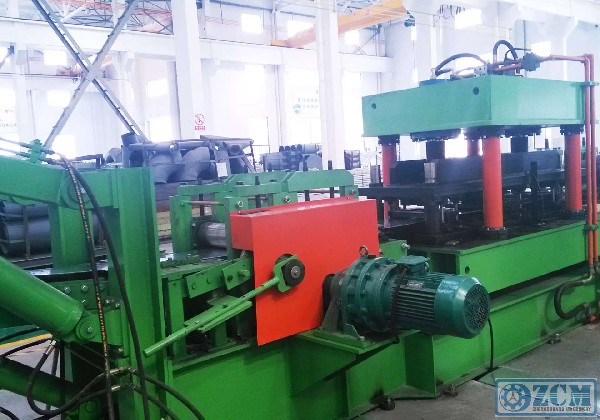

3.   Punching and cutting：

Using 200T tetrastyle hydraulic punching machine, hydraulic motor power15KW.

Punch material is Cr12MoV. Front and back has adjustable guiding roller,the material is Cr12MoV，hardness is HRC58º～60º, and will give you one set different bore diameter punch and die block.

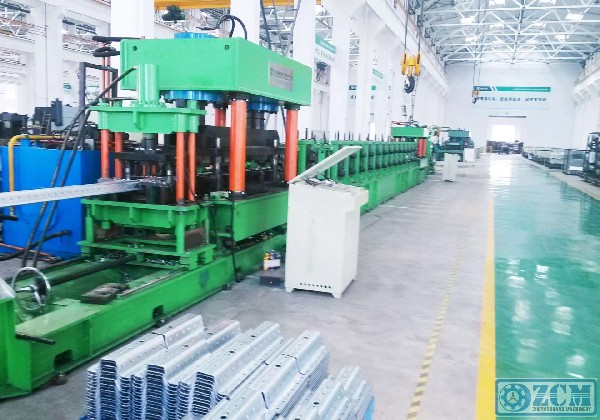

4   Roll forming machine：

15 steps mail roller, individual open memorial archway type structure,the memorial archway material is HT200 with tempering.The stand column cross sectional dimension is 100×80，3 steps guiding vertical roller. Shaft diameter is φ95 with thermal refining treatment. Single out shaft down drive gearbox has 15 pcs, bevel gear mod M=10，gearbox material is HT200。Main motor power 37kw，common motor, using frequency converter to control the speed. We also match helical surface reduction gears, speed ratio 48.57. Using 1.5 inch double row chain to drive between the drive gearboxes.Using universal drive shaft between the shafts. Using 2 inches double chain to drive between reduction gears.

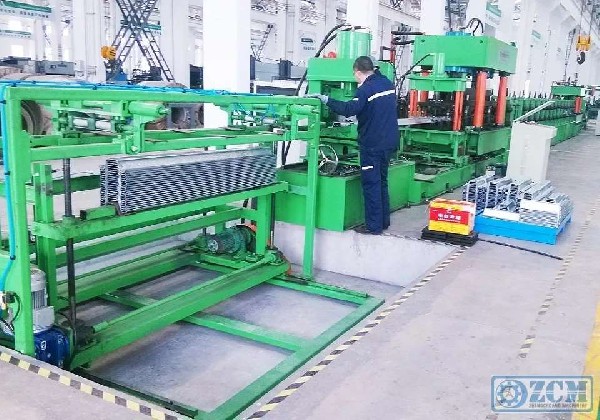

5 . Output table:

Output table using trolley type, length is 5M, material is 8# box iron.

6 . Control system：

Using Siemens PLC control system, touch screen, it can control the all parts of the whole line with manual or automatic.

Application：

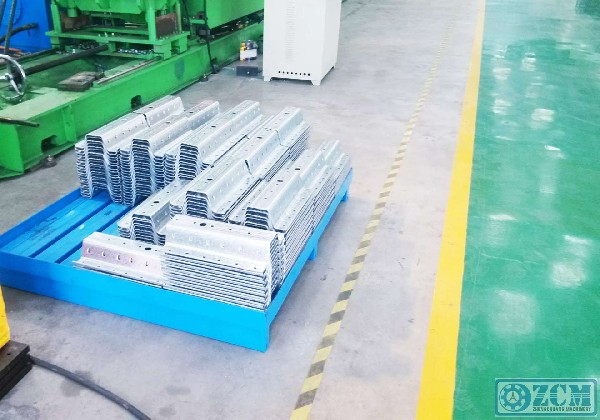

Column & connection plate production line

Function: Used for producing column & connection plate of bolted silo.

Profile: Column & connection plate production line is composed of nine parts: feeding machine, leveling and inclined pinch face, forming unit, punching, cutting, automatic palletizing, electric controlling system and hydraulic system. The production line can serve the automatic production of all the columns & connection plates, the max forming thickness of plate can achieve to 10mm/16mm, which can meet the needs of constructing ten thousand ton silo. The service this production line can improve the production efficiency and the product quality of column.

Production capacity: Can produce column 800pieces/day (8 hours);
