Steel Silo Roll Forming Machine

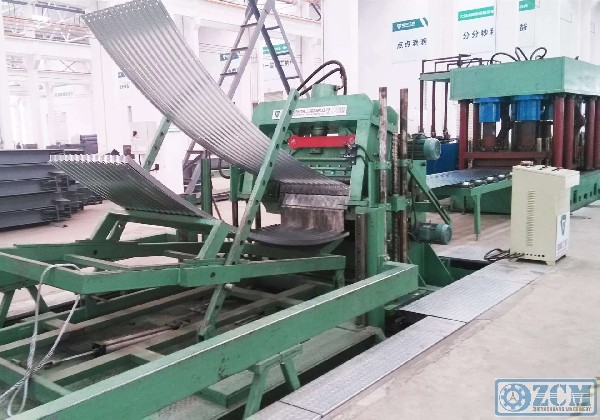

corrugated plate whole line

OTHER configuration:

NoItemsSpec.Unit1Type of machineRoof sheet2StructureWall board type3MaterialPPGI4Feeding width1200mm5Effective width1070mm6Thickness0.25-0.6mm7Strength yield550Mpa8Working speed16m/min9roller step18Steps10Roller material45# forged steel, hard chrome plating11Main shaft material45# high quality steel

get a free quote

Product Description

No	Items	Spec.	Unit
1	Type of machine	Roof sheet
2	Structure	Wall board type
3	Material	PPGI
4	Feeding width	1200	mm
5	Effective width	1070	mm
6	Thickness	0.25-0.6	mm
7	Strength yield	550	Mpa
8	Working speed	16	m/min
9	roller step	18	Steps
10	Roller material	45# forged steel, hard chrome plating
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of shaft	75	mm
13	Main motor power	7.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic station pressure	12	Mpa
16	Voltage	According to the customer requirements
17	Blade material	Cr12 quenching treatment
18	Electric system	Siemens PLC
19	Cut mode	Hydraulic cutting, cutting after forming
20	Color of the machine	Blue+Yellow
21	Container dimension	1x40	GP

Structure of the machine

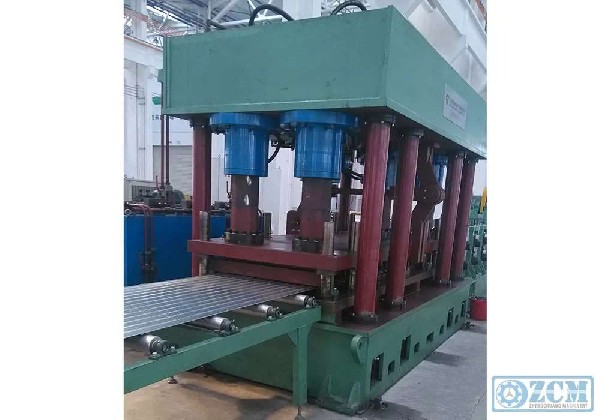

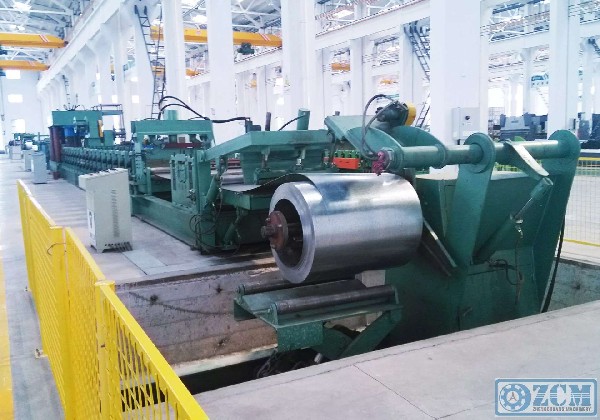

The machine is including 5T manual decoiler, drive device, roll forming machine( including the guiding platform), cutting machine, hydraulic system, electric system, output table, etc.

Forming speed: 2-4m/min;

Forming thickness: 1.0-5.0mm;

Forming stations: 18 steps;

Main motor power: 90kw;

Controlling system: PLC frequency conversion controlling, Japanese Omron Encoder;

Application：

Bin board production line (squares assembly silo)

Function: Used in new type of prefabricated plate production units;

Profile: Plate production line consists of six parts: feeding machine, pinch leveling, forming, punching, electric controlling system and hydraulic system. The line can produce the plate with high-efficiency & stable quality, meanwhile, the application of this plate is a large breakthrough of the industry. It takes the place of the welding production style, uses assembly silo construction, so as to reduce the leading time, improve the appearance & quality of bin plate, and create the value for clients.

Production capacity: Can produce bin plate 200 boards/day (8 hours);
