Roof Sheet Roll Forming Machine

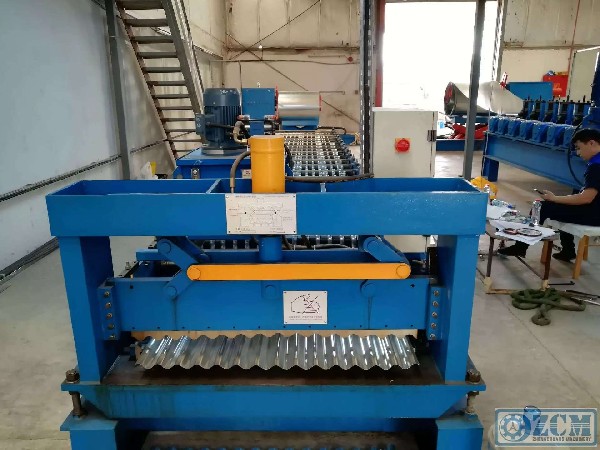

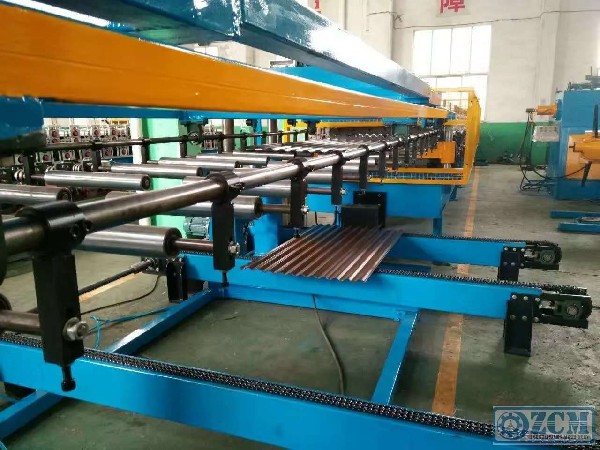

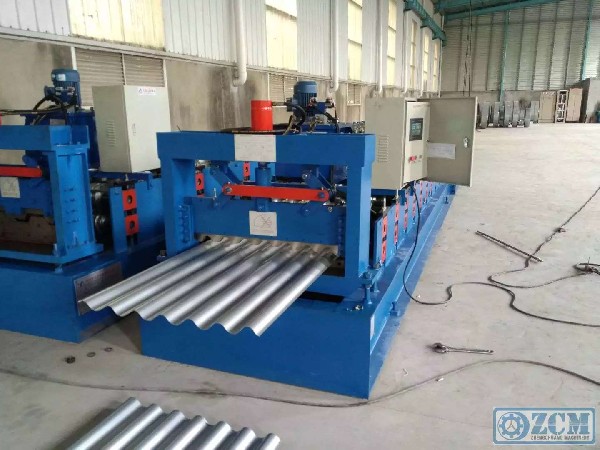

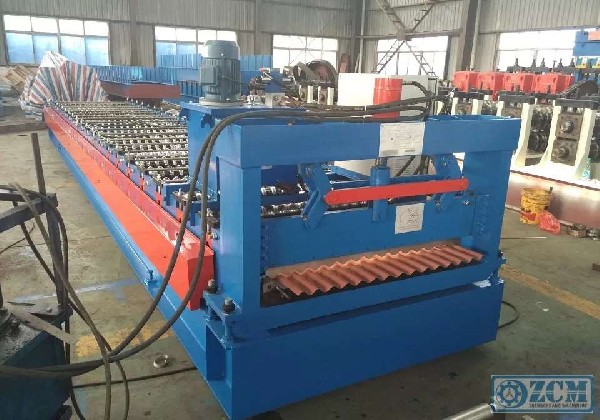

corrugated sheet roll forming machine

OTHER configuration:

Main dataNoItemsSpec.Unit1Type of machineYX16-76.2-7622StructureWall board type3MaterialPPGI4Feeding width925mm5Effective width762/686mm6Thickness0.25-0.6mm7Strength yield550Mpa8Working speed16m/min9roller step18Steps10Roller material45# forged steel, hard chrome plating11Main shaft material45# high

get a free quote

Product Description

Main data

No	Items	Spec.	Unit
1	Type of machine	YX16-76.2-762
2	Structure	Wall board type
3	Material	PPGI
4	Feeding width	925	mm
5	Effective width	762/686	mm
6	Thickness	0.25-0.6	mm
7	Strength yield	550	Mpa
8	Working speed	16	m/min
9	roller step	18	Steps
10	Roller material	45# forged steel, hard chrome plating
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of shaft	75	mm
13	Main motor power	7.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic station pressure	12	Mpa
16	Voltage	According to the customer requirements
17	Blade material	Cr12 quenching treatment
18	Electric system	Siemens PLC

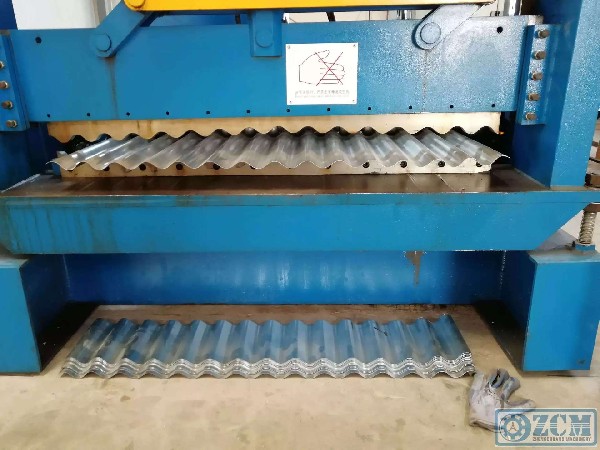

19	Cut mode	Hydraulic cutting, cutting after forming
20	Color of the machine	Blue+Yellow
21	Container dimension	1x40	GP
