I. Technical Parameter:

1. Specifications:

a．applied to : Cold rolled steel, galvanized steel, hot rolled steel

b．Tensile strength：δb≤450Mpa，δS≤280Mpa

c．thickness：0.3-3.0mm

d．width：500-2000mm（Max）

e．coil ID:  φ508mm

f． coil OD：φ1800mm（Max）

g．weight ：15T（Max）

h．diameter of leveling rollers: φ84mm

i． distance of leveling rollers：90mm,

j． material of leveling roller：GCr15,hardness:HRC55-60

k．total weight of machines：around 32T

2. Finished products parameters：

a. diagonal tolerance：≤±1mm/2000mm

b. length tolerance：≤±0.5mm/2000mm

3. Other parameters ：

a.  power ：380V/50Hz/3Ph

b.  line speed：0-80m/min . Cutting speed: 0-60m/min

c. capacity ：around 100Kw

d.  area of the whole production line(about) 24m(L)X8m(W)

e.   Production direction: from right to left(face to the machine from the operation panel)

f. people of operation: 1 technician and 2 general workers

g.  color of the machines: grass green

Ⅱ. Composed devices

■Hydraulic entry coil car

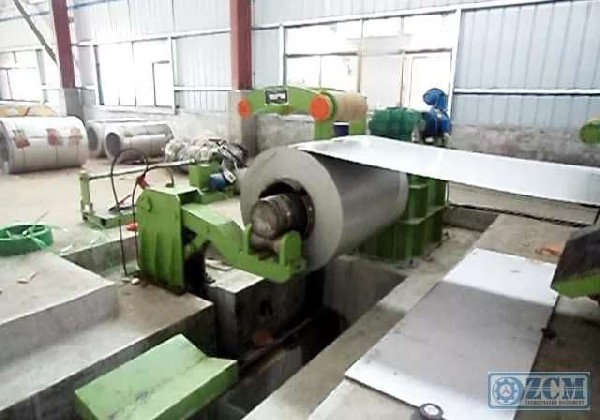

■Hydraulic de-coiler

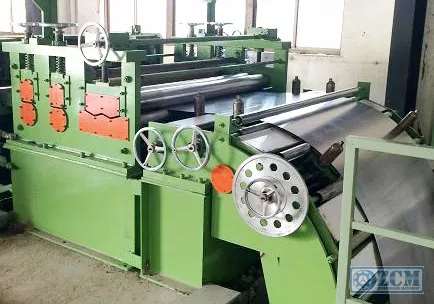

■4-hleveling machine

■Looper

■Side guide device

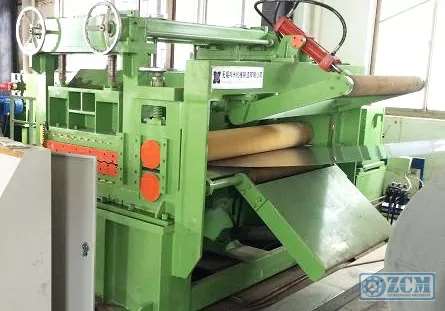

■Servo precision straightening machine

■High speed Cutter

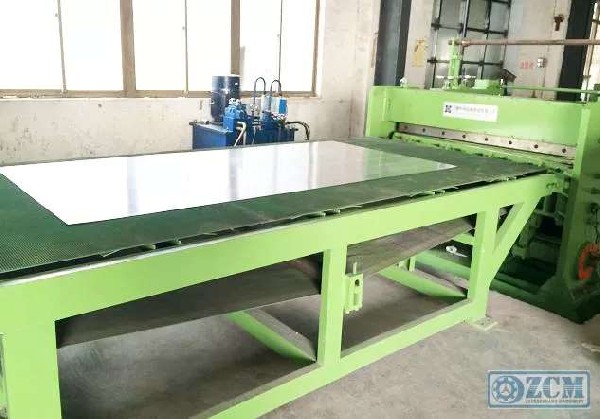

■Transportation table

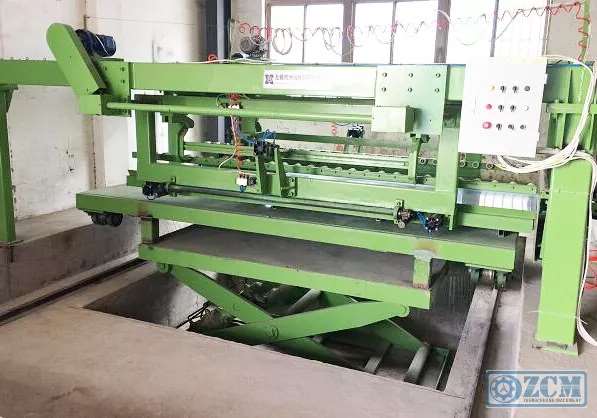

■Hydraulic lifting table

■Pneumatic stacker device

■Hydraulic exit coil car

■Pneumatic system

■Hydraulic system

■Electrical system
