Main data

1.Material（㎜）：Width：295mm，Thickness 0.3-0.6mm,Yield strength ≤550MPa。

2.Working speed：10～15M/min（Not including the cutting time）

3.Roller steps： 24 steps

4.Main motor power：7.5KW Servo motor

5.Hydraulic station motor power：11kW。Pressure of hydraulic station：10～12 Mpa

6.Roller material：High quality 40Cr forged steel with finish machining and quenching treatment. Hard chrome on surface

7.Main shaft material：High quality 45# steel with thermal refining treatment

8.Shaft diameter：φ76mm

9.Cutting mode：Hydraulic cutting after forming

10.Blade material：Cr12Mov with quenching treatment HRC58-62°

11.Drive mode：Chain drive

12.Tolerance：width-/+0.5mm, height-/+0.5mm，length -/+1.5mm

13.Electronic system：Siemens PLC to control the whole line, YASKAWA frequency converter.

14. We install the mesh safety protective cover on the machine.

Machine Structure

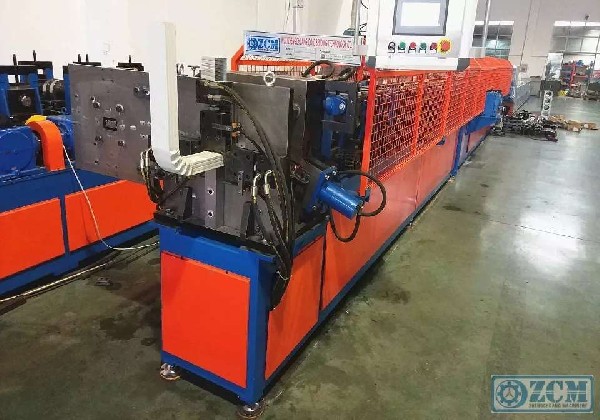

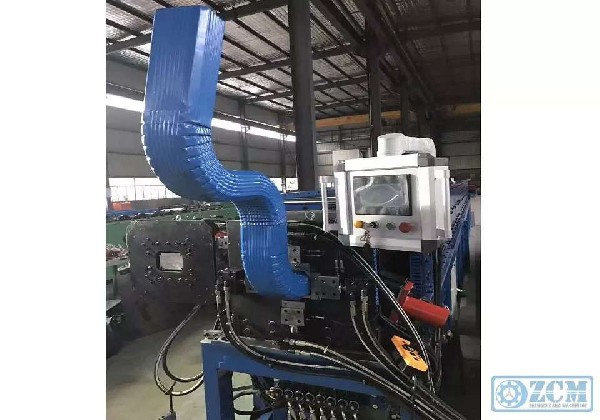

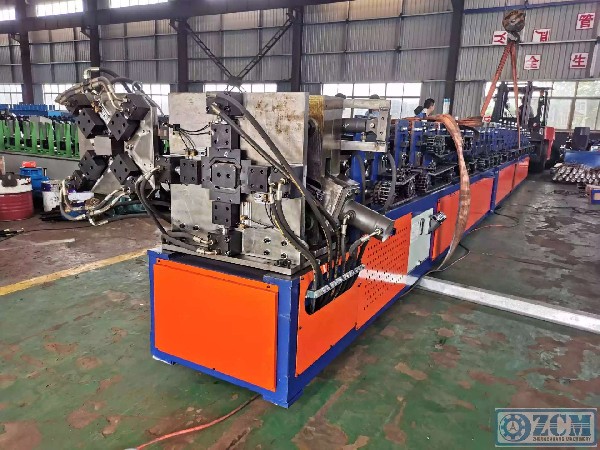

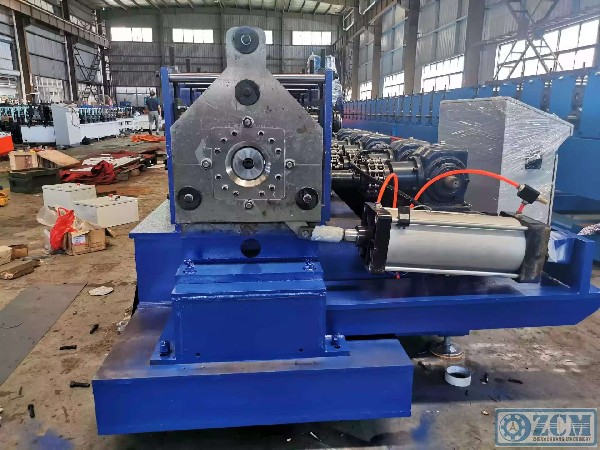

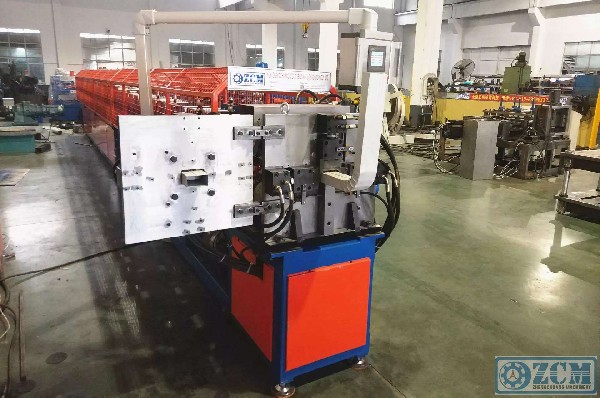

The machine is including 3T manual decoiler, drive device, roll forming machine, pinch device after forming, bending device after forming, cutting and necking down device, hydraulic system, electronic system, output table.
