1．Product dimension（㎜）：1250mm×(0.3-0.8mm)×L

2．Working speed：8-10 /min

3．Roller step：14 steps

4. Rack： 350H Steel welding

5. Shaft diameter：¢70mm, thermal refining before machining

6. Chain:1 inch, single row

7. Motor power of roll forming machine：5.5KW

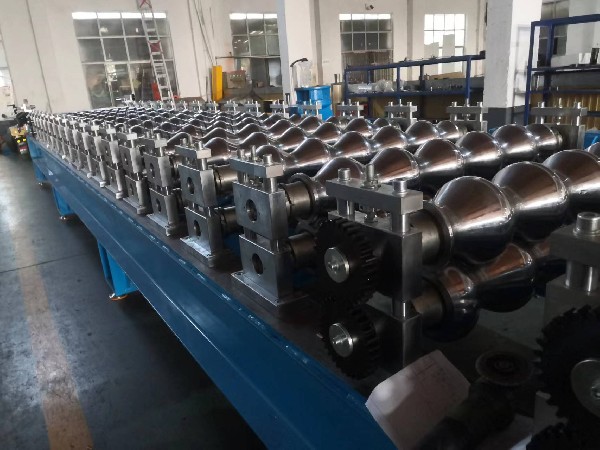

8. Roller material：High quality steel with forging. Surface is hard chrome plating.

9. Hydraulic station motor power：3Kw

10. Hydraulic station oil pump：gear pump

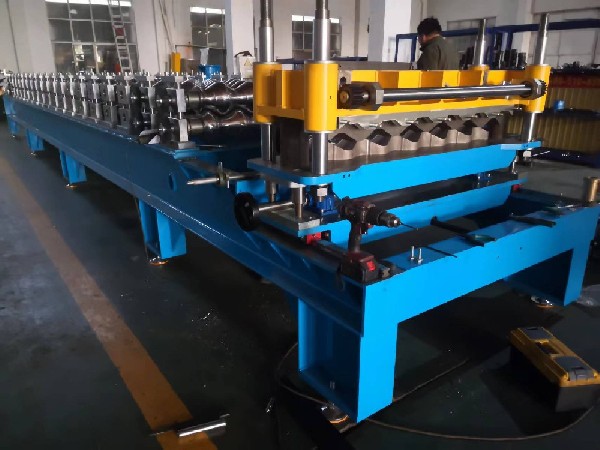

11．Cutting mode：Hydraulic cutting

12. Blade material：Cr12

13．Electronic system：Panasonic PLC system.

application：

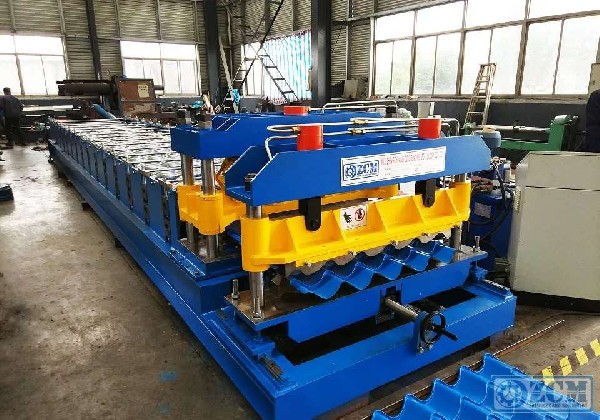

ZHENGCHUANG tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.

Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.

Decoiler- forming- press -cut - run out
