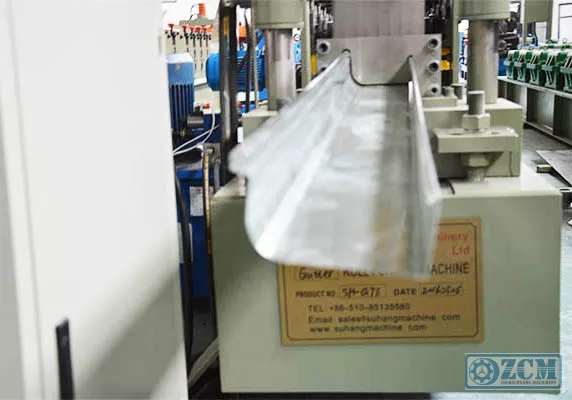

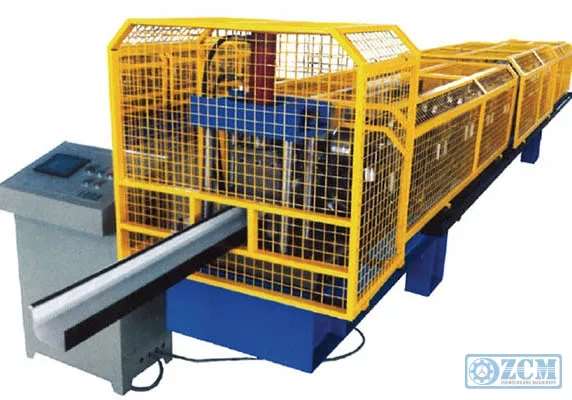

Gutter Roll Forming Machine

gutter roll forming machine

OTHER configuration:

Machine SpecificationsWeightAbout 4000kgsSizeAbout 6m x 1.0m x 1.5m (length x width x height)ColorMain color: blueWarning color: yellowSuitable Raw MaterialMaterialPPGI and PPGL CoilsThickness0.3-0.8mmCoil width610mmYield Strength235MpaMain Technical ParametersDiameter of forming rollers shafts55mmR

get a free quote

Product Description

Machine Specifications
Weight	About 4000kgs
Size	About 6m x 1.0m x 1.5m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	PPGI and PPGL Coils
Thickness	0.3-0.8mm
Coil width	610mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	55mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 4kw
Electric Power requirement	Hydraulic unit motor power: 2.2kw
Electric voltage	According to customer’s requirement
