A. Main data

1.  Material specification：thickness 2-2.5mm，strength yield≤G300MPa

2.  De-coiler：3T manual decoiler

3.  Working speed：8-10M/min（Including the punching and cutting time）

4.   Levelling machine: 11 rollers levelling, 2 rollers feeding

5.   Levelling machine motor power：5.5kW

6.   Roller step：18 steps

7.   Roller material: GCR15 quenching treatment

8.   Main shaft material: 45# high quality steel with thermal refining treatment.

9.    Main shaft diameter: ￠80mm

10.  Main motor power：30KW

11.   Structure mode：Torii structure, gearbox drive

12.  Hydraulic station motor power：5.5KW

13.  Servo motor power:4KW

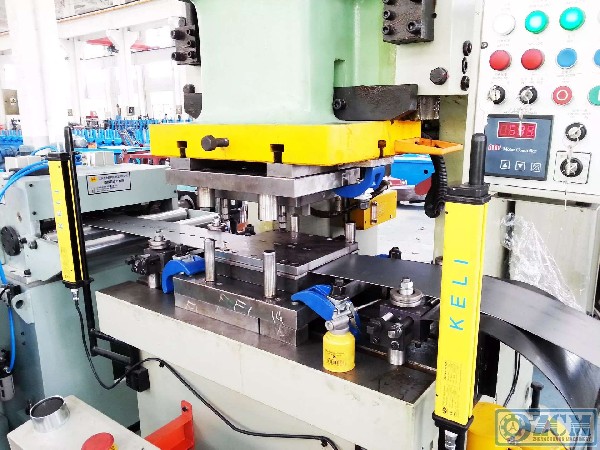

14.  Punching machine Tonnage: 80T

15.  Punching machine frequency: 45 times/min

16.  Electronic system：The whole line use PLC to control, PLC is Siemens PLC.

17.  Punching system：Using CNC control

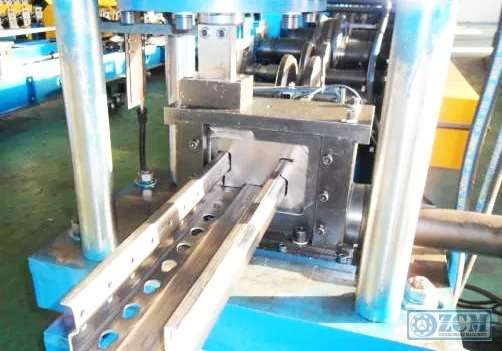

18.  Cutting mode：Hydraulic drive, cutting after forming( no waste materials)

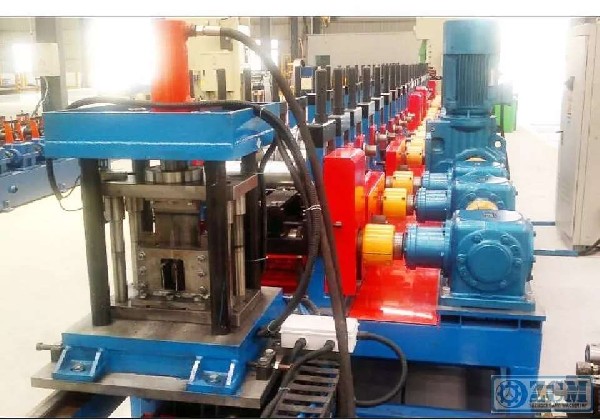

B. Main structure

The machine is including 3T de-coiler, levelling machine, servo feeding, punching machine, roll forming machine, rear cutting machine, hydraulic station, electronic system, output table, etc.
