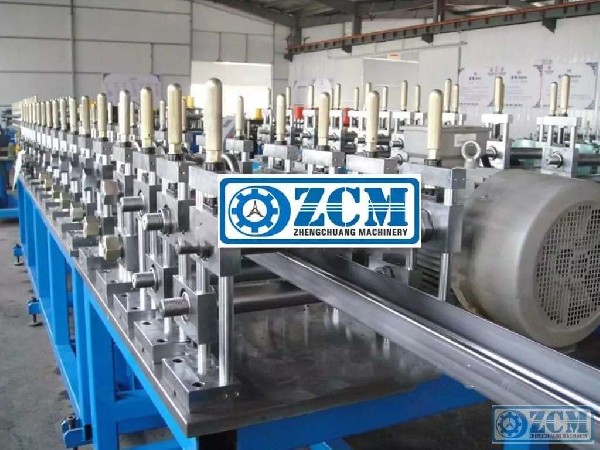

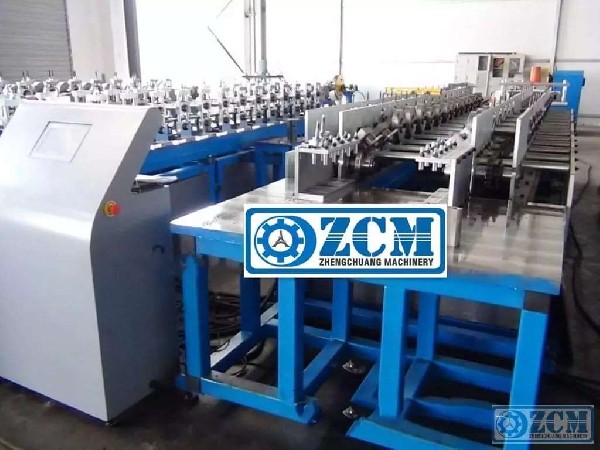

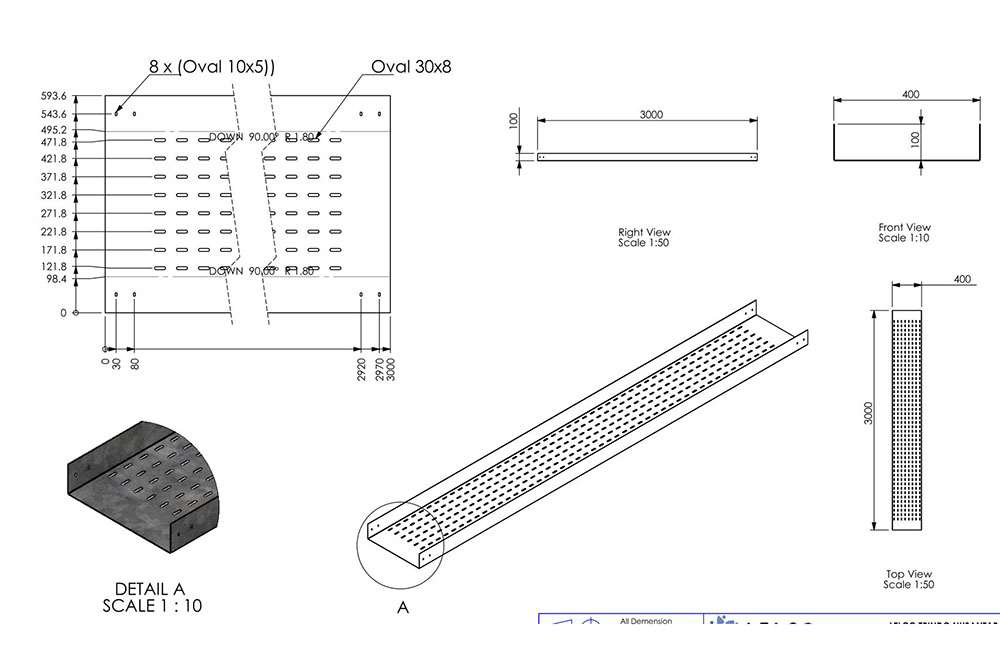

Cable Tray Roll Forming Machine

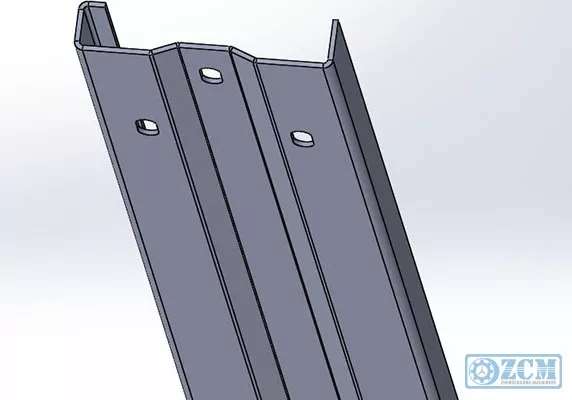

ladder cable tray roll forming machine

OTHER configuration:

WeightAbout 50000kgsWhole line’s dimensionAbout 45m x 3m x 1.5m (length x width x height)ColorMain color: greenWarning color: yellowSuitable Raw MaterialMaterialGalvanized or Galvalume CoilsThickness0.6-2.0mmCoil widthAccording to products sizeYield Strength235MpaMain Technical ParametersQuantity o

get a free quote

Product Description

Suitable Raw Material
Weight	About 50000kgs
Whole line’s dimension	About 45m x 3m x 1.5m (length x width x height)
Color	Main color: green
Color	Warning color: yellow
Material	Galvanized or Galvalume Coils
Thickness	0.6-2.0mm
Coil width	According to products size
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	About 24
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4-6m/min
Forming rollers material	Gcr15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	Panasonic PLC and Yaskawa Converter
Electric Power requirement	Main motor power: 4x5.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage

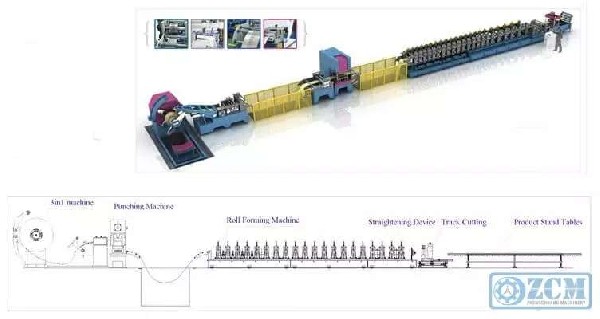

Main Components
Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Leveling system	1 set
Punching machine	1 set

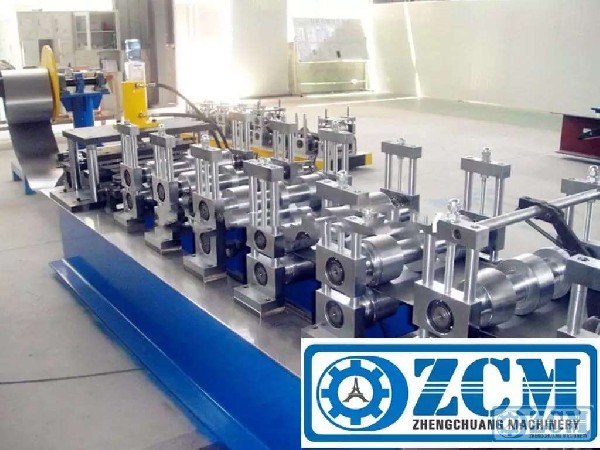

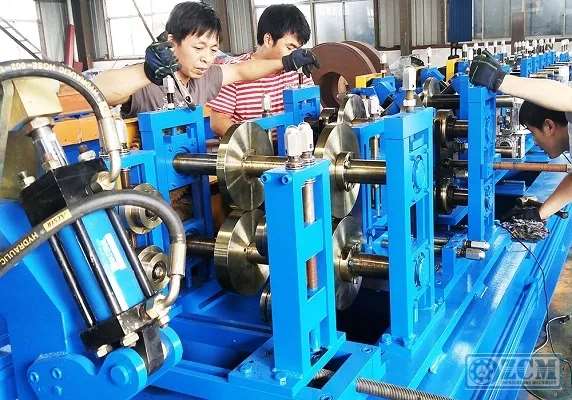

Roll Forming system	1 set
Hydraulic Cutting system	1 set
PLC control box	1 set
Hydraulic unit	1 set
Run outs tables	1 set
