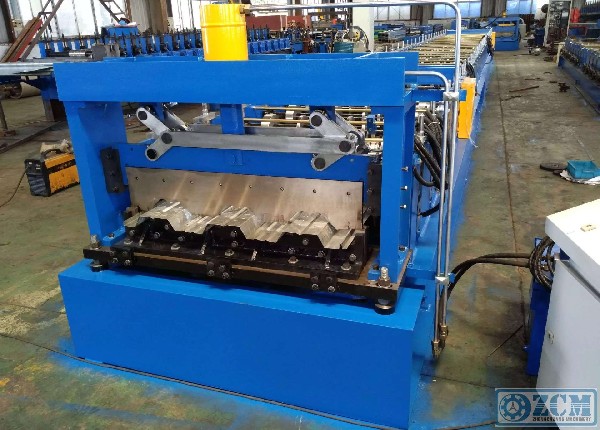

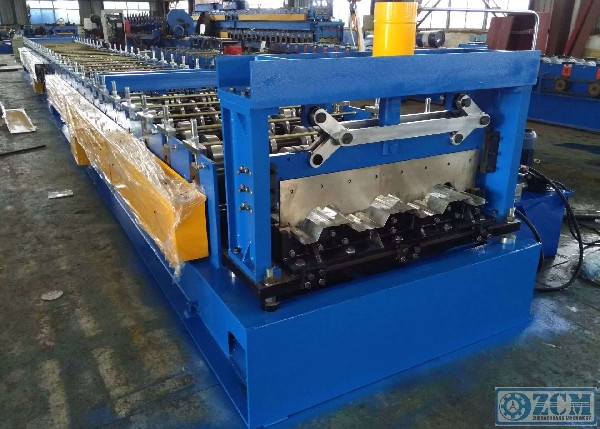

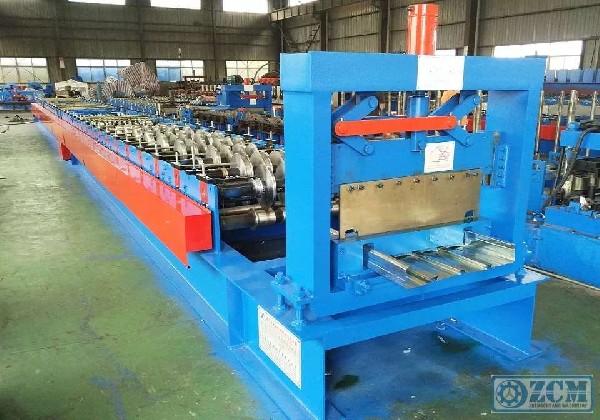

Floor Deck Roll Forming Machine

metal deck roll forming machine

OTHER configuration:

Machine SpecificationsWeightAbout 15000kgsSizeAbout 16m x 1.8m x 1.5m (length x width x height)Suitable Raw MaterialMaterialGalvanized or Galvalume CoilsThickness0.8-1.2mmYield Strength235MpaMain Technical ParametersDiameter of forming rollers shafts95mmRoll Forming Speed10-15/minForming rollers mat

get a free quote

Product Description

Machine Specifications
Weight	About 15000kgs
Size	About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.8-1.2mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	95mm
Roll Forming Speed	10-15/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 3x11kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer's requirement
