Racking Shelf Roll Forming Machine

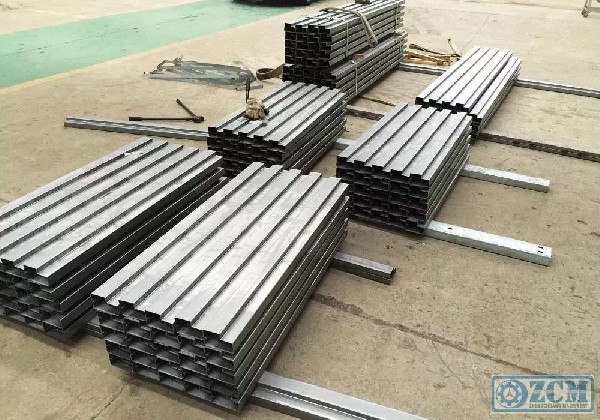

pallet rack beam roll forming machine

OTHER configuration:

The Line’s SpecificationsWeightAbout 10000kgsWhole line’s dimensionAbout 25m x 2m x 1.6m (length x width x height)ColorMain color: blueWarning color: yellowSuitable Raw MaterialMaterialGalvanized or Galvalume CoilsThickness2.0-2.5mmCoil width238mmYield Strength235MpaMain Technical ParametersQuanti

get a free quote

Product Description

The Line’s Specifications
Weight	About 10000kgs
Whole line’s dimension	About 25m x 2m x 1.6m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	2.0-2.5mm
Coil width	238mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	22-26
Diameter of forming rollers shafts	82mm
Roll Forming Speed	8-10m/min
Production Speed	4-6m/min
Forming rollers material	CR12 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: about15kw
Electric Power requirement	Hydraulic unit motor power: about 5.5kw
Electric voltage	According to customer’s requirement
Main Components
Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Leveling system	1 set

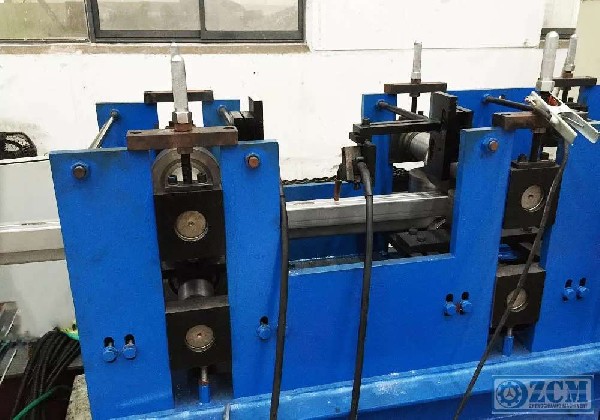

Roll Forming system	1 set

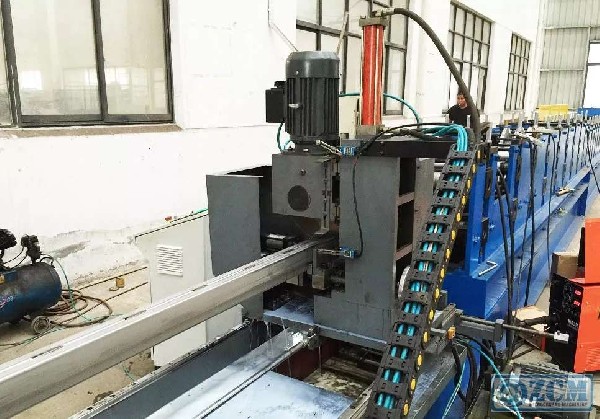

Hydraulic Cutting system	1 set
PLC control box	1 set
Hydraulic unit	1 set
Run outs tables	1 set
