A. Main data

1.Material specification：thickness 2-2.5mm，strength yield≤G300MPa

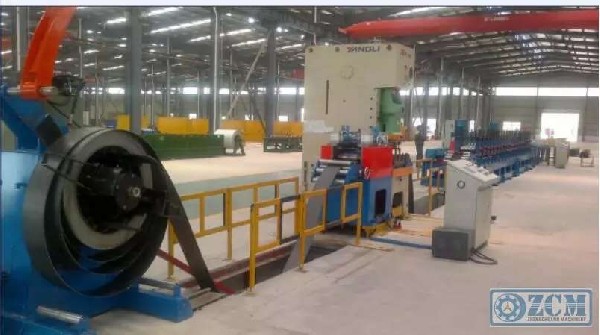

2.De-coiler：3T manual decoiler

3.Working speed：8-10M/min（Including the punching and cutting time）

4.Levelling machine: 11 rollers levelling, 2 rollers feeding

5.Levelling machine motor power：5.5kW

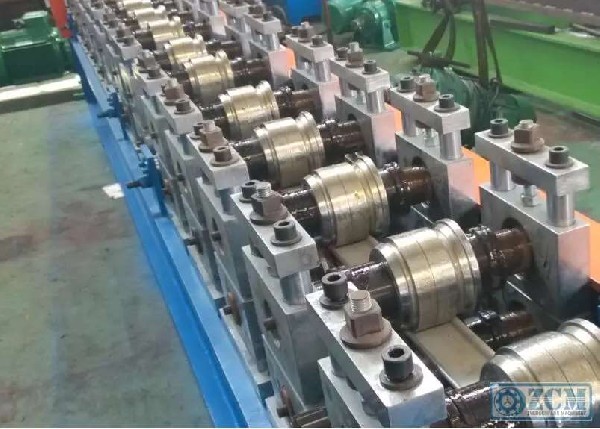

6.Roller step：18 steps

7.Roller material: GCR15 quenching treatment

8.Main shaft material: 45# high quality steel with thermal refining treatment.

9.Main shaft diameter: ￠80mm

10.Main motor power：30KW

11. Structure mode：Torii structure, gearbox drive

12.Hydraulic station motor power：5.5KW

13.Servo motor power:4KW

14.Punching machine Tonnage: 80T

15.Punching machine frequency: 45 times/min

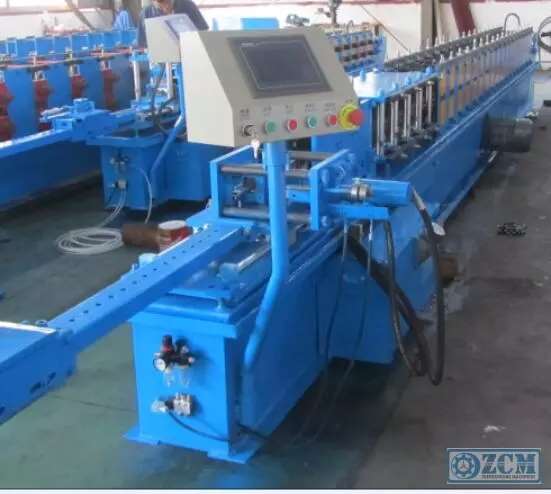

16.Electronic system：The whole line use PLC to control, PLC is Siemens PLC.

17.Punching system：Using CNC control

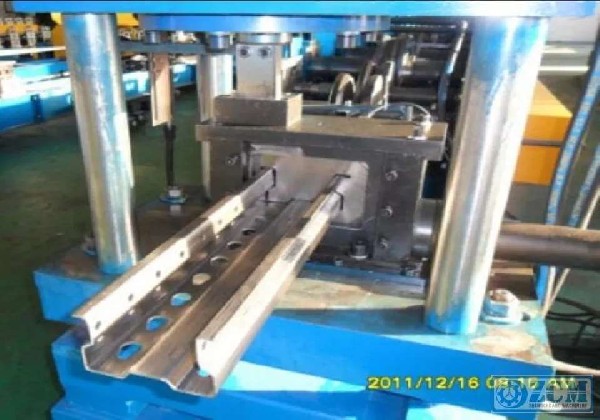

18.Cutting mode：Hydraulic drive, cutting after forming( no waste materials)
