Roof Sheet Roll Forming Machine

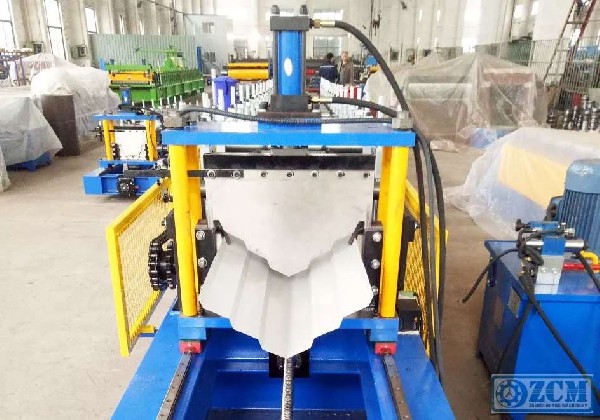

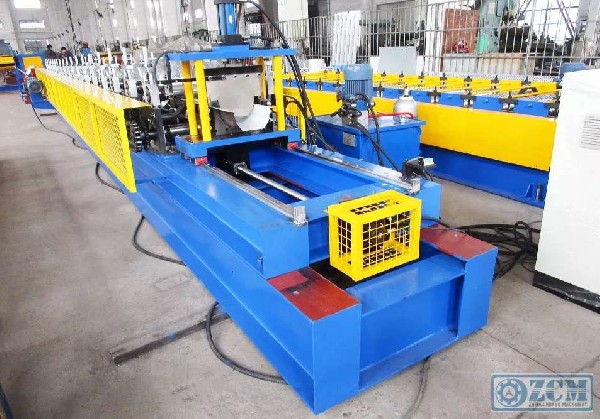

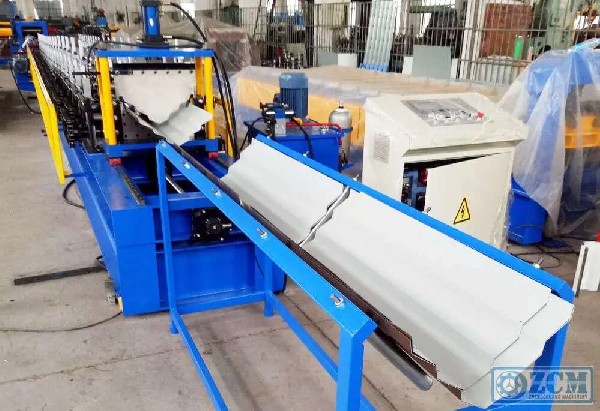

ridge cap roll forming machine

OTHER configuration:

A. Main dataItemsUnit1Machine Typeridge cap2StructureWall board type3Raw materialPPGI4Feeding width457mm5Effective width316mm6Thickness0.3-0.8mm7Yield strength550Mpa8Working speed12-18m/min9Step QTY16step10Roller material40r forged steel, quenching treatment with hard chrome plating11Main shaft mate

get a free quote

Product Description

A. Main data

Items	Unit
1	Machine Type	ridge cap
2	Structure	Wall board type
3	Raw material	PPGI
4	Feeding width	457	mm
5	Effective width	316	mm
6	Thickness	0.3-0.8	mm
7	Yield strength	550	Mpa
8	Working speed	12-18	m/min
9	Step QTY	16	step
10	Roller material	40r forged steel, quenching treatment with hard chrome plating
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of the shaft	65	mm
13	Main motor power	5.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic pressure	12	Mpa
16	Voltage	According to the requirement of customer
17	Blade material	Cr12 quenching treatment
18	Electric system	Panasonic PLC

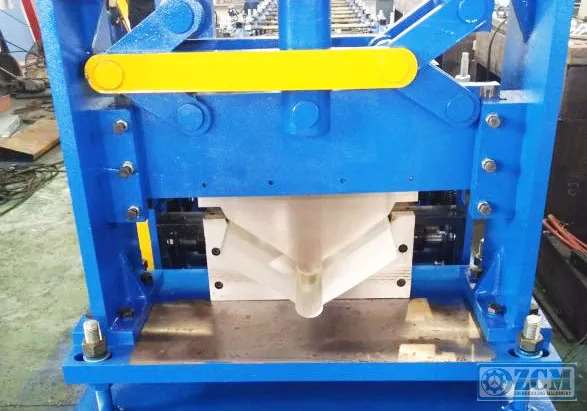

19	Cutting mode	Hydraulic cutting, cutting after forming
20	Color	Blue+ yellow
The machine is including 5T manual decoiler, drive system, roll forming machine, cutting device, hydraulic system, electric system and output table, etc. C、Production technology process <span font-size:12px;"="" style="transition: all 0.6s ease 0s;-webkit-tap-highlight-color: transparent">Feeding Leveling Forming Cutting after forming output
