Roller Shutter Door Foll Forming Machine

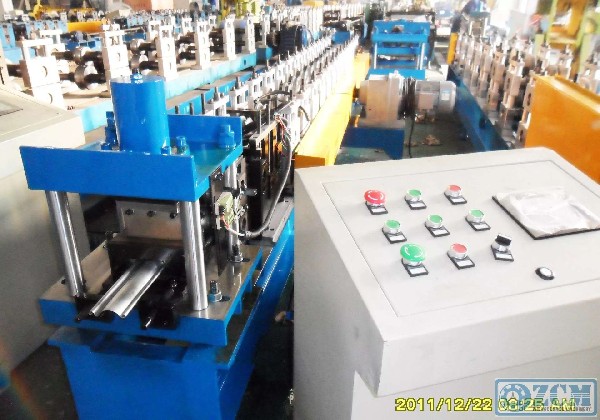

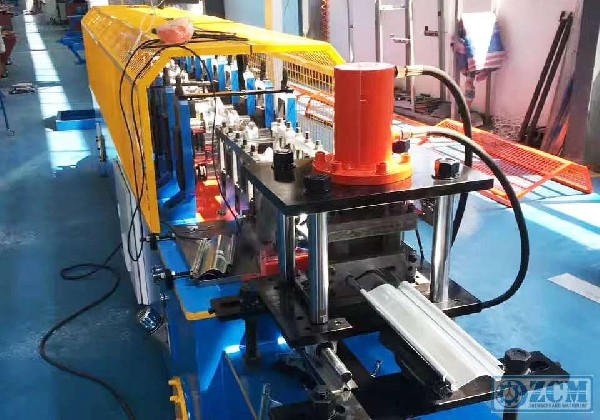

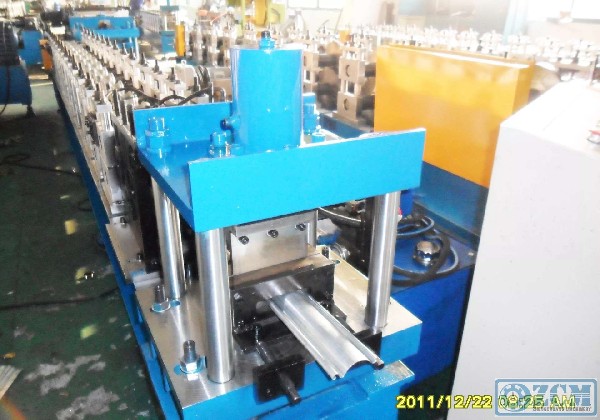

roller shutter door roll forming machine

OTHER configuration:

No.ItemSpecUnit1Machine TypeYX18-752StructurePost guides type3Raw materialGI4Feeding widthAbout 90mm5Effective width75mm6Thickness0.8~1.2MMmm7Yield strength550Mpa8Working speed10-18m/min9Roller QTY13Step10Roller material40CR，quenching treatment and with hard chroming plate11Main shaft materia

get a free quote

Product Description

No.	Item	Spec	Unit
1	Machine Type	YX18-75
2	Structure	Post guides type
3	Raw material	GI
4	Feeding width	About 90	mm
5	Effective width	75	mm
6	Thickness	0.8~1.2MM	mm
7	Yield strength	550	Mpa
8	Working speed	10-18	m/min
9	Roller QTY	13	Step
10	Roller material	40CR ，quenching treatment and with hard chroming plate
11	Main shaft material	45# high quality steel, thermal refining treatment
12	Diameter of the shaft	60	mm
13	Main motor power	5.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic pressure	12	Mpa
16	Voltage	380V,50HZ,3 Phase
17	Blade material	Cr12 quenching treatment
18	Electric system	Siemens
19	Cutting mode	Hydraulic cutting, cutting after forming
20	Color	Blue+Yellow
21	Container dimension	1x20	GP
22	Weight	6	T
23	Dimension of the machine	680010001100	MM
