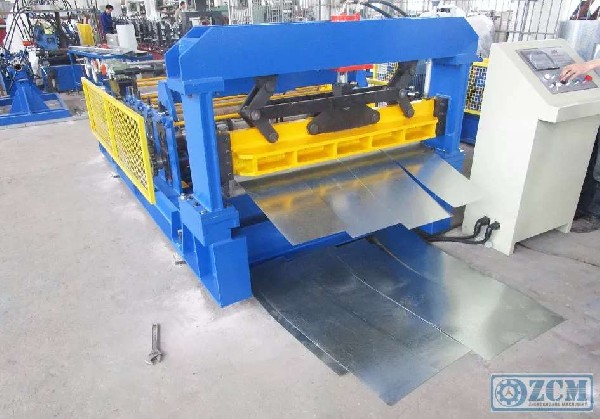

Simple Cutting and Slitting Machine

simple cutting and slitting machine

OTHER configuration:

Machine SpecificationsWeightAbout 3000kgsSizeAbout 3m x 1.5m x 1.5m (length x width x height)ColorMain color: blueWarning color: yellowSuitable Raw MaterialMaterialPPGI and PPGL CoilsThickness0.3-0.7mmCoil widthMAX.1250mmYield Strength235MpaMain Technical ParametersDiameter of forming rollers shafts

get a free quote

Product Description

Machine Specifications
Weight	About 3000kgs
Size	About 3m x 1.5m x 1.5m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	PPGI and PPGL Coils
Thickness	0.3-0.7mm
Coil width	MAX.1250mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	75mm
Running Speed	15-20m/min
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 3kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement
