Slitting And Cut To Length Line

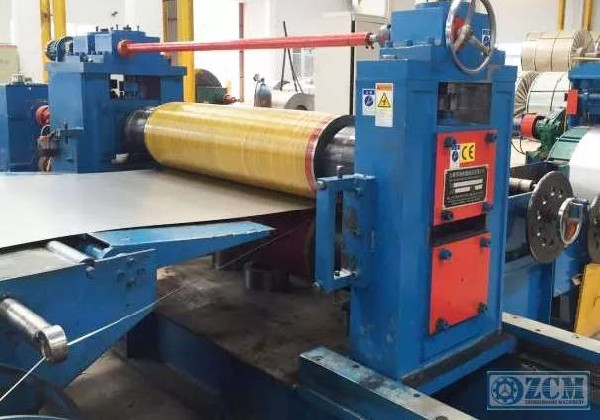

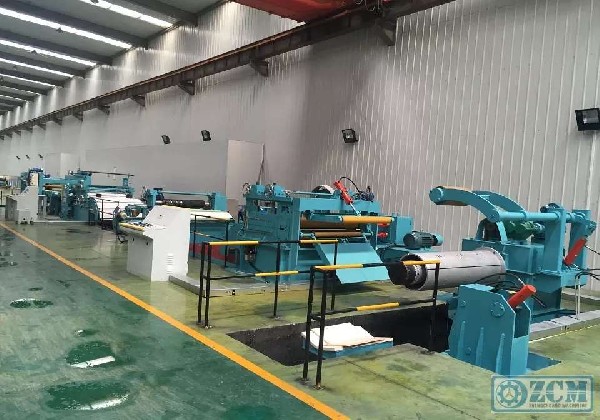

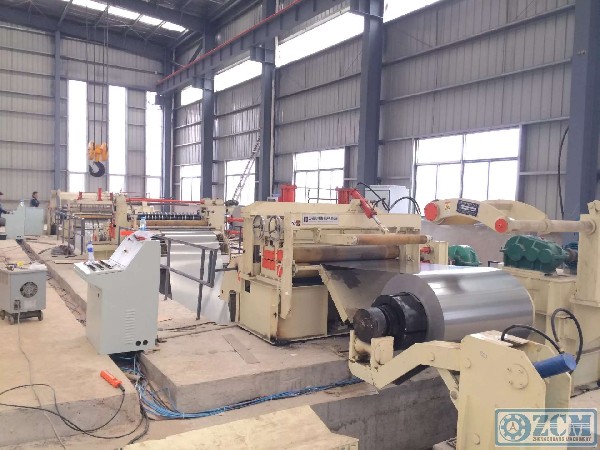

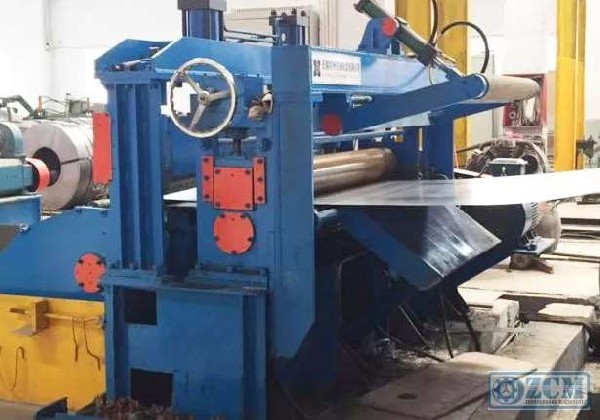

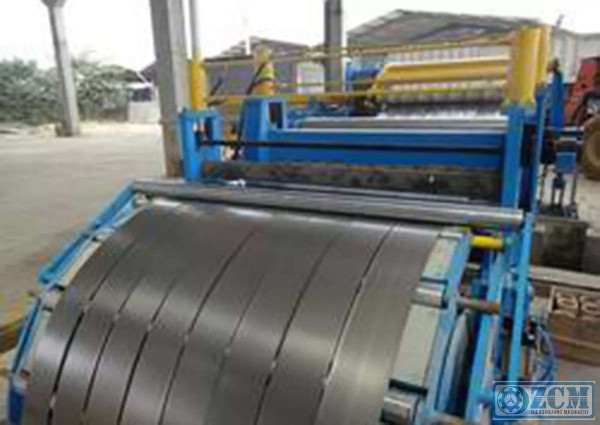

slitting line

OTHER configuration:

<span font-size:12px;"="" style="transition: all 0.6s ease 0s;-webkit-tap-highlight-color: transparent">No.NameUnitParameter1.Control modelPLCPLC frequency control2.Applied toMild steel (Soft) and High Tensile ( GI)3.Thicknessmm0.5-3.04.Widthmm12705.IDmmΦ5086.ODmm≤16

get a free quote

Product Description

<span font-size:12px;"="" style="transition: all 0.6s ease 0s;-webkit-tap-highlight-color: transparent">No.	Name	Unit	Parameter
1.	Control model		PLC PLC frequency control
2.	Applied to		Mild steel (Soft) and High Tensile ( GI)
3.	Thickness	mm	0.5-3.0
4.	Width	mm	1270
5.	ID	mm	Φ508
6.	OD	mm	≤1600
7.	Coil weight	Ton	≤5
8.	Slitting blade shaft	mm	Φ180
9.	Blade specification	mm	Φ320×Φ180×15
10.	Material of blade		6CrW2Si
11.	Power of slitter	KW	30
12.	Quantity of strips (Max)	pcs	4
13.	Width tolerance		≤±0.05 mm
14.	Leveling roller diameter	mm	65
15.	Number of leveling rollers		70
16.	Material of leveling roller		GCr15
17.	Material of cutter blade		6CrW2Si
18.	Speed	m/min	≤30
19	Length tolerance		L=2m ≤±0.5
20.	Diagonal tolerance		L=2m ≤±1 mm
21.	Power		380V/3PH/50HZ
22．	Machine color		White
