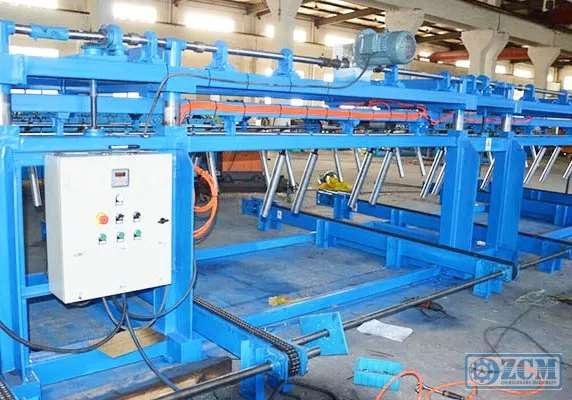

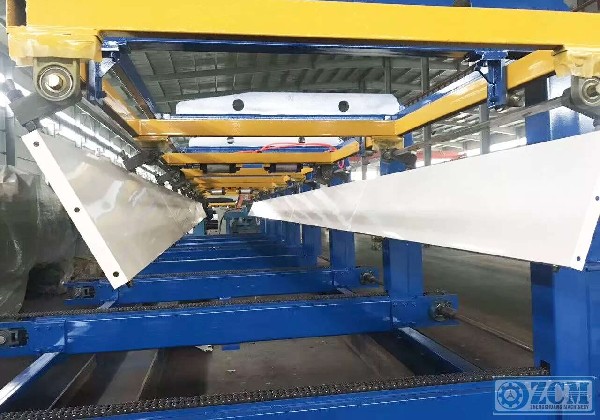

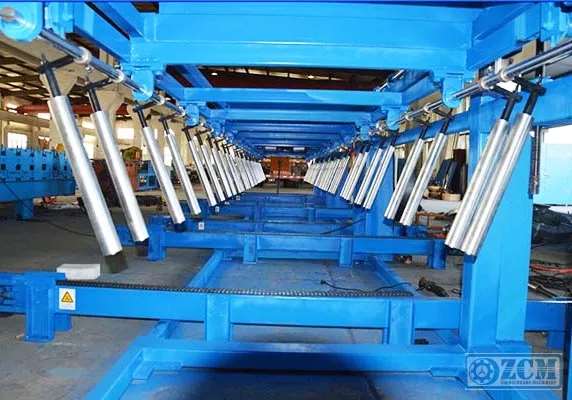

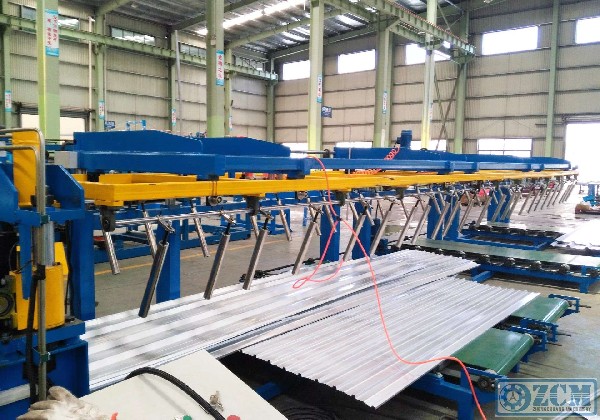

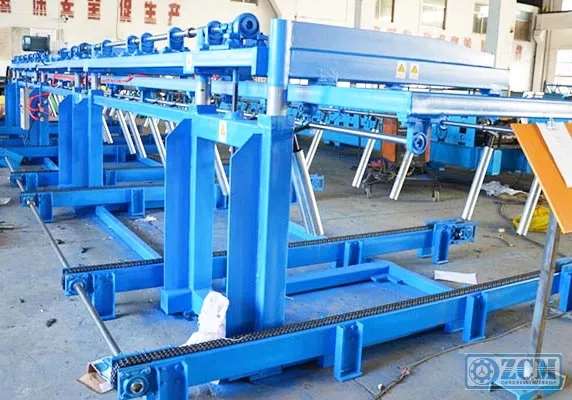

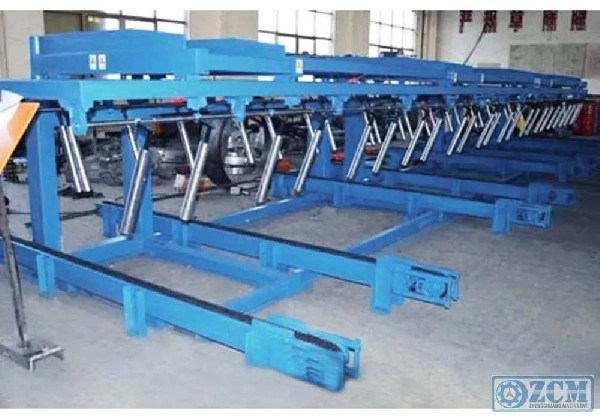

Stacker

stacker

OTHER configuration:

Machine SpecificationsLengthAccording to your requirementColorMain color: blueWarning color: yellowMain Technical ParametersLoading Capacity2 tonPower to dispatchpneumaticPower to horizontal movemotorTechnique process：Aircylinderejector——Carrypanelstart——Panel fall

get a free quote

Product Description

Machine Specifications
Length	According to your requirement
Color	Main color: blue
Color	Warning color: yellow
Main Technical Parameters
Loading Capacity	2 ton
Power to dispatch	pneumatic
Power to horizontal move	motor

Technique process ：

Air cylinder ejector——Carry panel start——Panel falling—Out put

1. Conveyer belt speed:36m/min
2. Tanker chain speed:18m/min
3. Max auto height speed:300mm
4. Movable push plate speed:10m/min
5. Out able Length:12m(the length can be adjustable according to the customer requirement, the max length is 12m
6. Outer size 13331×4055×1485(mm) 7. PLC control
