Home >> Products >> Roll Forming Machine >> Drywall Stud Track Roll Forming Machine

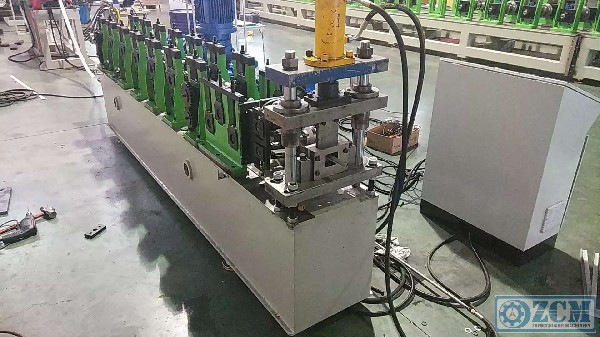

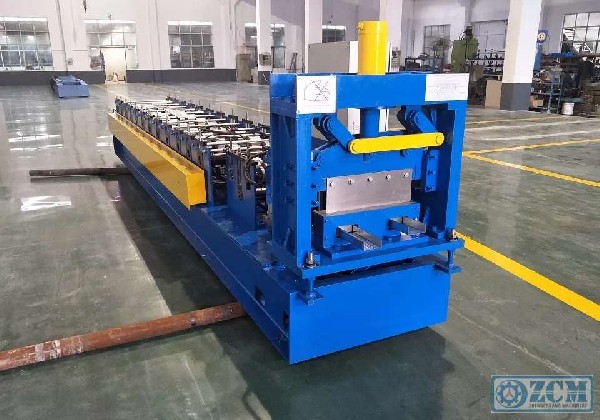

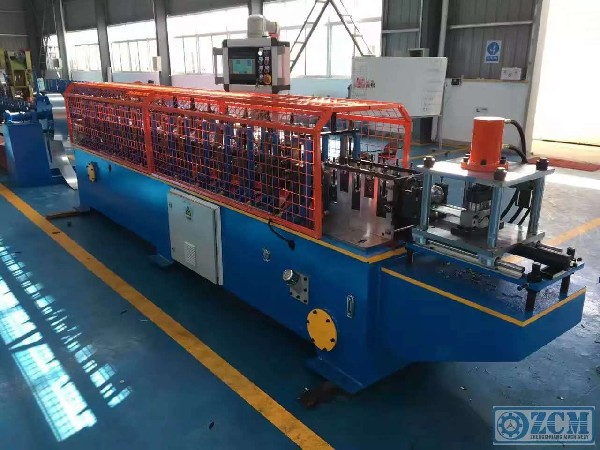

Drywall Stud Track Roll Forming Machine

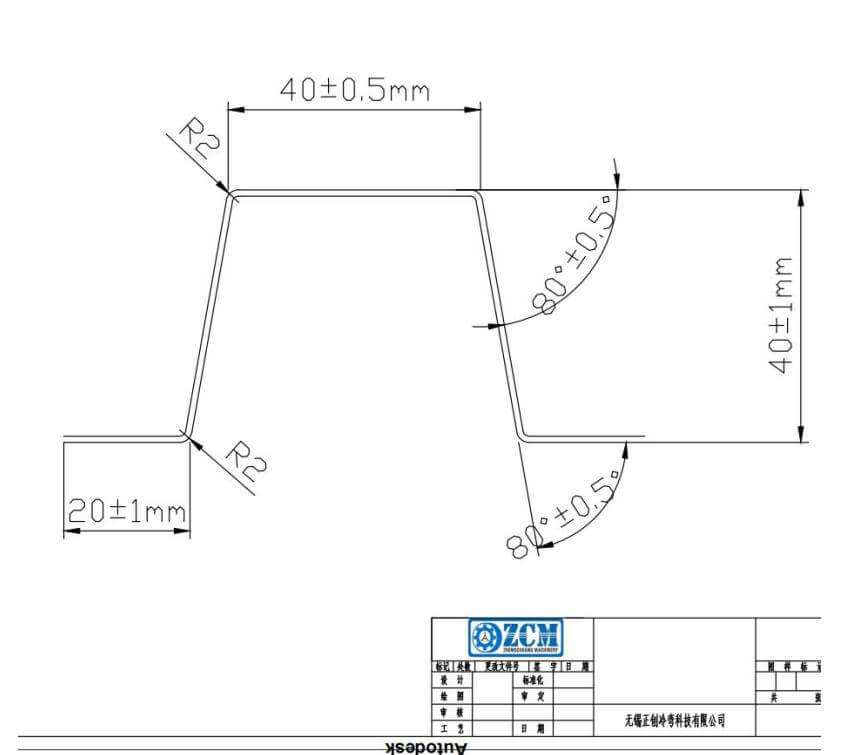

stud and track roll forming machine

OTHER configuration:

Machine SpecificationsWeightAbout 3500kgsSizeAbout 6m x 1.6m x 1.5m (length x width x height)ColorMain color: blueWarning color: yellowSuitable Raw MaterialMaterialGalvanized Steel CoilsThickness0.3-0.6mmCoil width153mm and 175mmYield Strength235MpaMain Technical ParametersQuantity of forming roller

get a free quote

Product Description

Machine Specifications
Weight	About 3500kgs
Size	About 6m x 1.6m x 1.5m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.3-0.6mm
Coil width	153mm and 175mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	12-14
Diameter of forming rollers shafts	60mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement
