A、Main data

1．Material specification（㎜）：1220mm x(0.3-0.7mm) x L,strength yield≤350MPa

2．Working speed：10-15M/min

3．Roller QTY：18 groups

4．Main motor power：7.5kW

5.  Hydraulic motor power：3kW

6．Material of the roller：High quality 45 forged steel, high frequency quenching treatment and with hard chrome plating.

7．Main shaft ：High quality 45# steel finish machining and thermal refining.

8．Diameter of main shaft：φ75mm

9．Pressure of hydraulic station：10～12 Mpa

10．Blade material：Cr12 quenching treatment

11．Electric system：The whole line use PLC frequency converting control,cutting length tolerance≤2mm(PLC、frequency converter, touch screen is domestic famous brand. Encoder is Japanese Omron)

12．Boundary dimension of the machine:(LxWxH)：10800x1500x1300mm

B、Machine structure

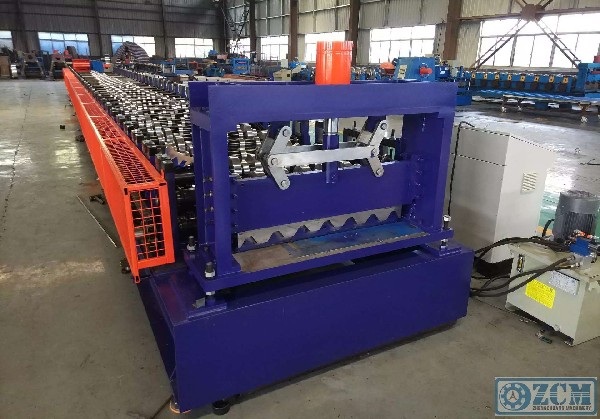

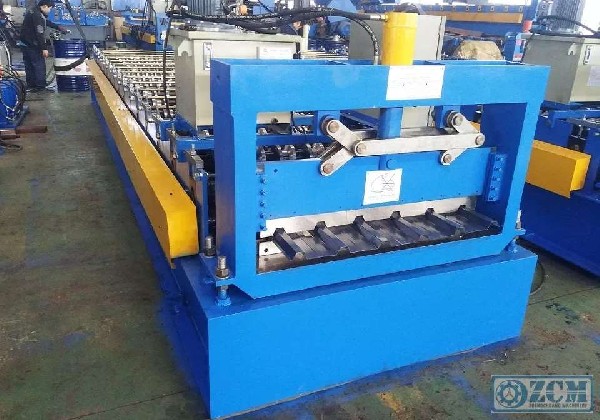

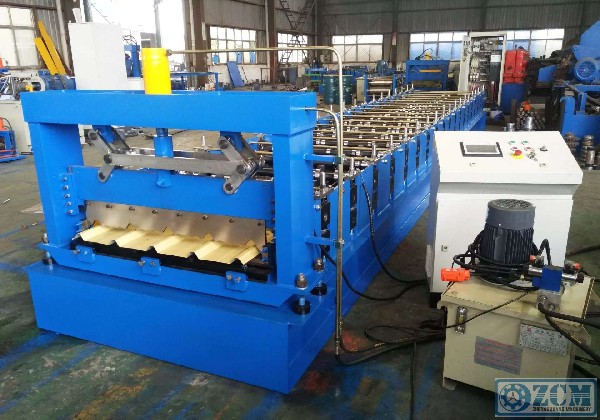

YX25-140-980 roll forming machine is including 5T manual feeding device, drive device, roll forming machine( including the guiding platform), cutting after forming, hydraulic system, electric system.

C、Production technology process

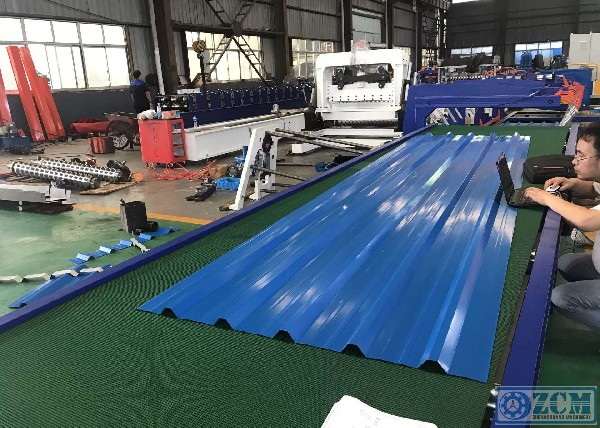

Feeding       Leveling      Forming       cutting after forming output
