1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

2. Working Speed: 12-15 meters / min

3. Forming Steps: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A

7. Main Power with reducer: 11KW WH Chinese Famous

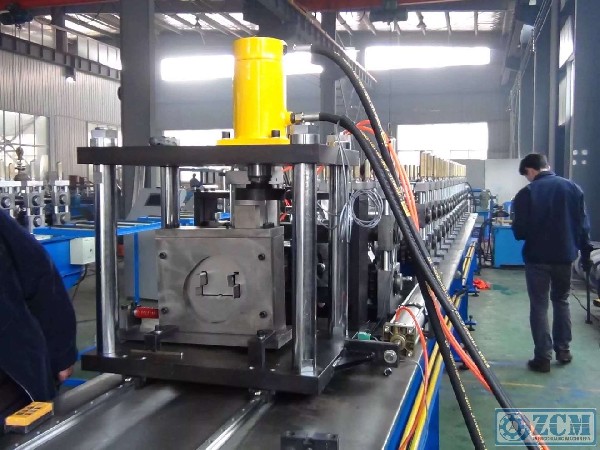

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand

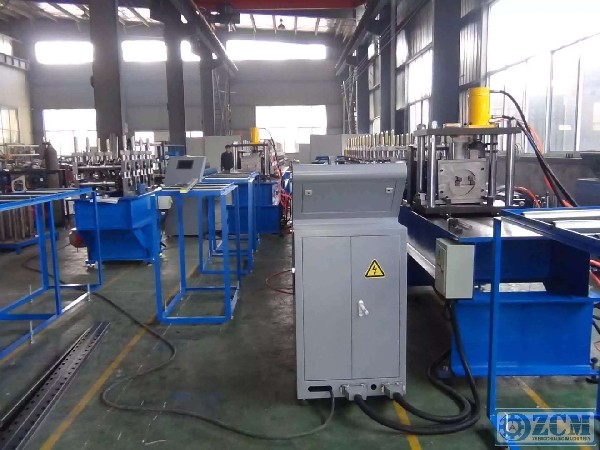

11. The whole machine is controlled by industry computer-PLC.

12. PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider
