Other Special Shape Roll Forming Machine

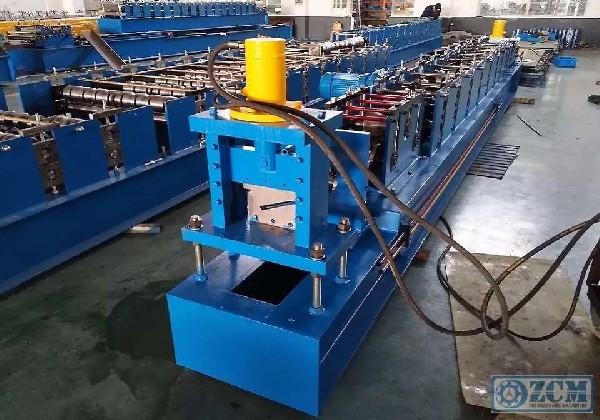

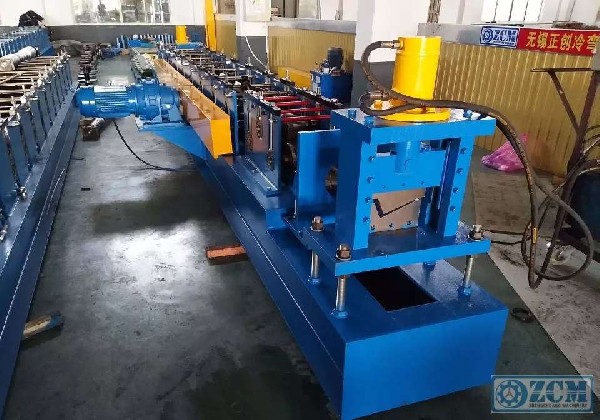

v shape roll forming machine

OTHER configuration:

NoItemSpecUnit1Machine TypeSpecial shape stud2StructureWall board type3Raw materialGI4Feeding width108mm5Effective width30mm6Thickness0.5mm7Yield strength350Mpa8Working speed10-16m/min9Roller QTY18Step10Roller material40r forged steel, quenching treatment with hard chrome plating11Main shaft materia

get a free quote

Product Description

No	Item	Spec	Unit
1	Machine Type	Special shape stud
2	Structure	Wall board type
3	Raw material	GI
4	Feeding width	108	mm
5	Effective width	30	mm
6	Thickness	0.5	mm
7	Yield strength	350	Mpa
8	Working speed	10-16	m/min
9	Roller QTY	18	Step
10	Roller material	40r forged steel, quenching treatment with hard chrome plating
11	Main shaft material	45# high quality steel, quenching treatment
12	Diameter of the shaft	60	mm
13	Main motor power	5.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic pressure	12	Mpa
16	Voltage	According to the requirement of customer
17	Blade material	Cr12 quenching treatment
18	Electric system	Panasonic PLC
19	Cutting mode	Hydraulic cutting, cutting after forming
20	Color	Blue+ yellow
21	Container dimension	1x20	GP
22	Weight	4	T

B.Structure of the machine

The machine is including 3T manual decoiler, drive system, roll forming machine, cutting device, hydraulic system, electric system and output table, etc.
