Gutter Roll Forming Machine

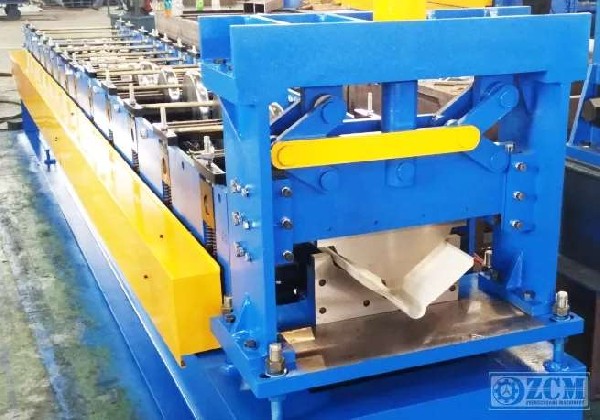

valley gutter roll forming machine

OTHER configuration:

No.ItemSpecificationUnit1Machine TypeValley gutter2StructureWall board type3MaterialGalvalume4Feeding width405mm5Effective width315mm6Thickness range0.2-0.25mm7Yield strengthG550Mpa8Forming speed12-18m/min9Roller steps17Step10Roller material45# forged steel, with hard chrome plating11Main shaft mate

get a free quote

Product Description

No.	Item	Specification	Unit
1	Machine Type	Valley gutter
2	Structure	Wall board type
3	Material	Galvalume
4	Feeding width	405	mm
5	Effective width	315	mm
6	Thickness range	0.2-0.25	mm
7	Yield strength	G550	Mpa
8	Forming speed	12-18	m/min
9	Roller steps	17	Step
10	Roller material	45# forged steel, with hard chrome plating
11	Main shaft material	45# High quality steel, with quenching treatment
12	Shaft diameter	65	mm
13	Main motor power	5.5	KW
14	Hydraulic station power	3	KW
15	Hydraulic station pressure	12	Mpa
16	Voltage	According to the customer requirement
17	Blade material	Cr12 with quenching treatment
18	Electric system	Panasonic PLC

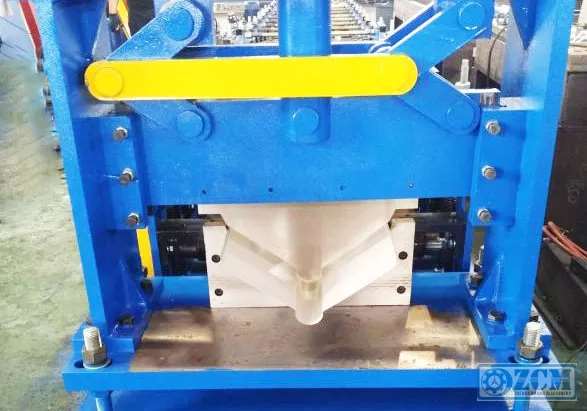

19	Cutting mode	Hydraulic cutting, cutting after forming
20	Machine color	Blue +Yellow
21	Container dimension	1x20	GP

B. Main features of the machine

The machine is including 5T manual feeder, drive device, roll forming machine, cutting machine, hydraulic system, electronic system, output table, etc.

Production Technology Process

Feeding Levelling forming cutting after forming output
