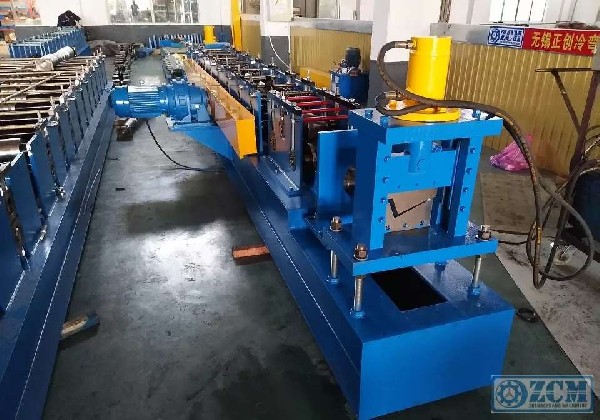

Drywall Stud Track Roll Forming Machine

wall angle roll forming machine

OTHER configuration:

ItemsSpecificationsMaterial Thickness0.4-0.8 mm galvanized sheet G550Rolling SpeedAbout 20 m/min line speedRoller StationsAbout 9 stationsRoller Material45# Steel with quenching 60mm shaftMaim Motor Power5.5 kwhydraulic station Power4 kwMaterial Of CuttingCR12 with quench treatmentHardnessHRC58-62To

get a free quote

Product Description

Items	Specifications
Material Thickness	0.4-0.8 mm galvanized sheet G550
Rolling Speed	About 20 m/min line speed
Roller Stations	About 9 stations
Roller Material	45# Steel with quenching 60mm shaft
Maim Motor Power	5.5 kw
hydraulic station Power	4 kw
Material Of Cutting	CR12 with quench treatment
Hardness	HRC58-62
Tolerance	+-1.5mm
Electric Source	380V, 50HZ,3 phase <span font-size:12px;"="" style="transition: all 0.6s ease 0s;-webkit-tap-highlight-color: transparent">Also can satisfy Customer’s require
Control System	PLC control system
Weight	About 2.5 tons
Way Of Drive	1 inch single chain
Size of machine	Length 4500mm* Width 500mm* Height 800m

application：

Steel building is a metal structure fabricated with steel for the internal support and for exterior cladding, as opposed to steel framed buildings which generally use other materials for floors, walls, and external envelope. Steel buildings are used for a variety of purposes including storage, work spaces and living accommodation. They are classified into specific types depending on how they are used.

Steel provides several advantages over other building materials, such as wood:

• Steel is a "green" product; it is structurally sound and manufactured to strict specifications and tolerances. It is also energy efficient. Any excess material is 100% recyclable.

• Steel does not easily warp, buckle, twist or bend, and is therefore easy to modify and offers design flexibility. Steel is also easy to install.

• Steel is cost effective and rarely fluctuates in price.

• Steel allows for improved quality of construction and less maintenance, while offering improved safety and resistance.

• With the propagation of mold and mildew in residential buildings, using steel minimizes these infestations. Mold needs moist, porous material to grow. Steel studs do not have those problems.
